Removal Procedure

  1. Remove the rear bench seat from the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
  2. Remove the right and left sides of the seat back hinge trim. Refer to SEAT BACK HINGE TRIM REPLACEMENT - REAR RIGHT (YC6)  and SEAT BACK HINGE TRIM REPLACEMENT - REAR LEFT  .

    Important:  Note the position and the length of the bolts removed. This will assist with reassembly.

  3. Remove the bolts that retain the seat back hinge to the seat back frame and the seat cushion frame.
  4. Remove the latch release cable from the seat back hinge.
  5. Remove the seat back hinge from the seat cushion frame.

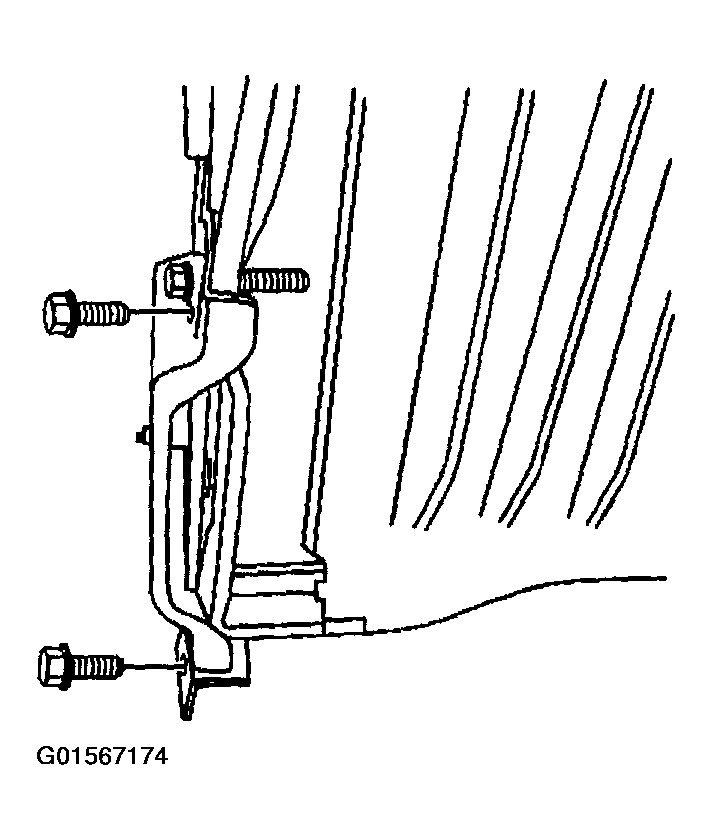

    Fig 1: Removing Right And Left Seat Back Frame Hinge Bolts - Rear (YC5 And YC6)
    G01567174Courtesy of GENERAL MOTORS CORP.
