Installation Procedure

  1. Install the seat back hinges to the seat frame.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts that retain the seat back hinges to the seat back frame and to the seat cushion frame.

    Tighten

    Tighten the bolts that retain the seat back hinges to the seat back frame and the seat cushion frame to 30 N.m (22 lb ft).

  3. Install the bolts in the locations noted during disassembly.
  4. Install seat cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT (YC7)  .
  5. Install the J-hooks that retain the carpet to the seat back and to seat cushion frame and to the corners of the seat cushion cover.
  6. Install the armrest. Refer to ARMREST REPLACEMENT (YC6)  or ARMREST REPLACEMENT (YC7)  .
  7. Install the bucket seat to the riser. Refer to SEAT REPLACEMENT - BUCKET  .

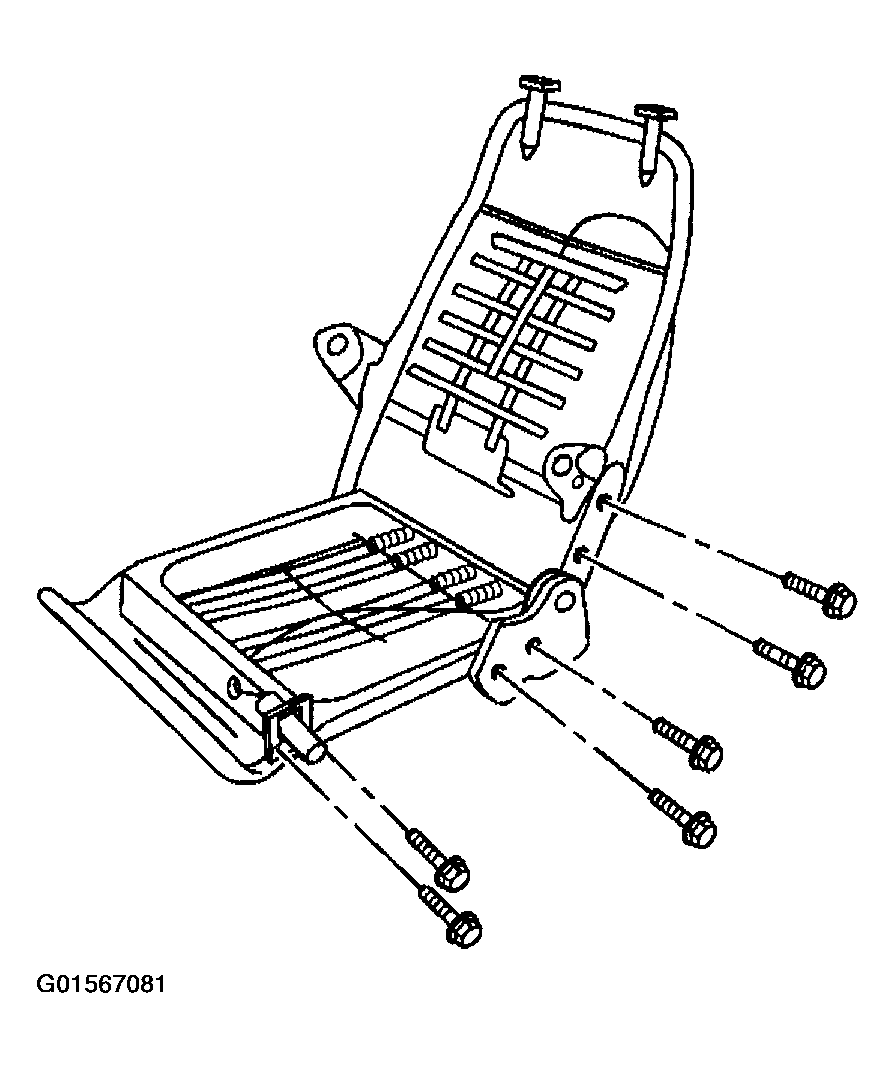

    Fig 1: Installing Bolts Retaining Seat Back Hinge To Seat Frame (YC7)
    G01567081Courtesy of GENERAL MOTORS CORP.
