Installation Procedure

  1. Install the seat back hinge to the seat back frame.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts retaining the seat back hinge to the seat back frame.

    Install the bolts in the locations noted during disassembly.

    Tighten

    Tighten the bolts retaining the seat back hinge to the seat back frame to 30 N.m (22 lb ft).

  3. Install the armrests, if equipped. Refer to ARMREST REPLACEMENT (YC6)  or ARMREST REPLACEMENT (YC7)  .

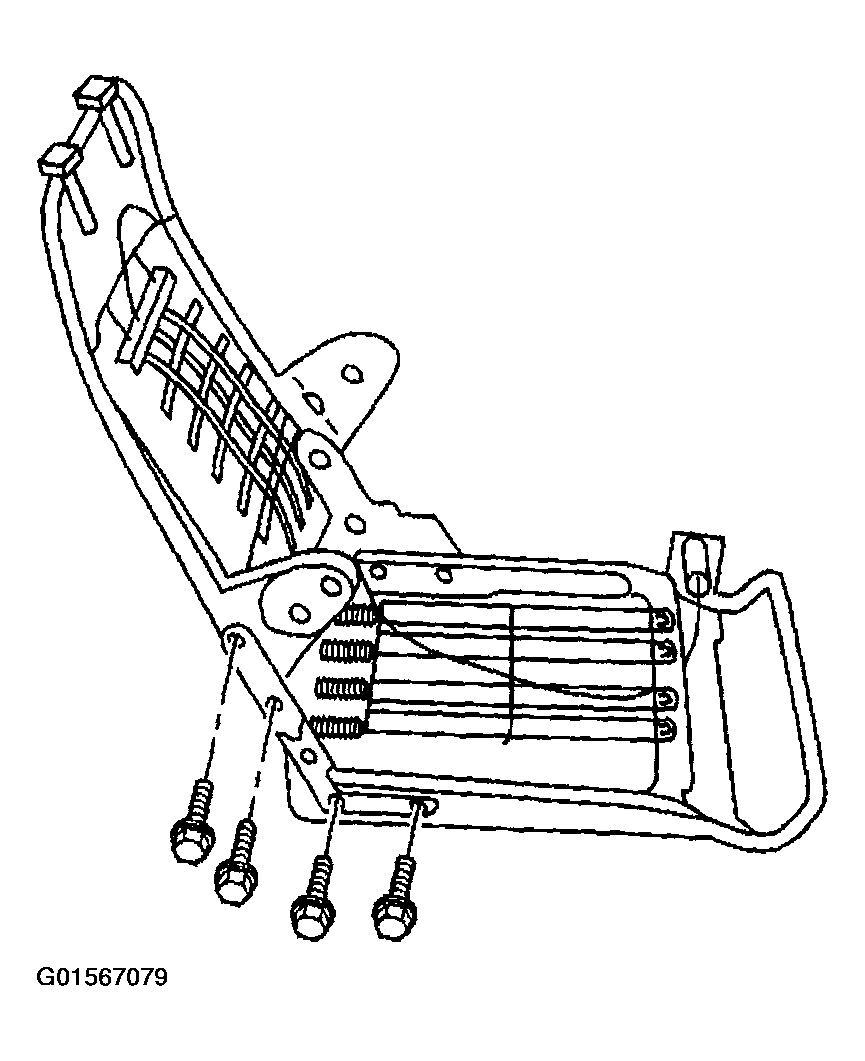

    Fig 1: Installing Seat Back Hinge To Seat Back Frame (YC5 And YC6)
    G01567079Courtesy of GENERAL MOTORS CORP.
  4. Install the bolts that retain the seat back hinge to the seat cushion frame.

    Install the bolts in the locations from which they were removed, as noted during disassembly.

    Tighten

    Tighten the bolts that retain the seat back hinge to the seat cushion frame to 30 N.m (22 lb ft).

  5. Install the seat cushion J-hook to the seat cushion frame as follows:
    1. 5.1. Install the J-hook that retains the seat cover to the carpet on the back of the seat on the side of the seat containing the recliner.
    2. 5.2. Install the J-hook to the seat frame on the side of the seat containing the seat back hinge.
    3. 5.3. Install the J-hook to the rear of the seat back.
  6. Install the bucket seat to the riser. Refer to SEAT REPLACEMENT - BUCKET  .
