Removal Procedure

  1. Remove the rear bench seat from the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
  2. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR (YC7)  .

    Important:  Note the position and the length of the bolts removed. This will assist with reassembly.

  3. Remove the right and left bolts that retain the seat back frame to the seat back hinges.

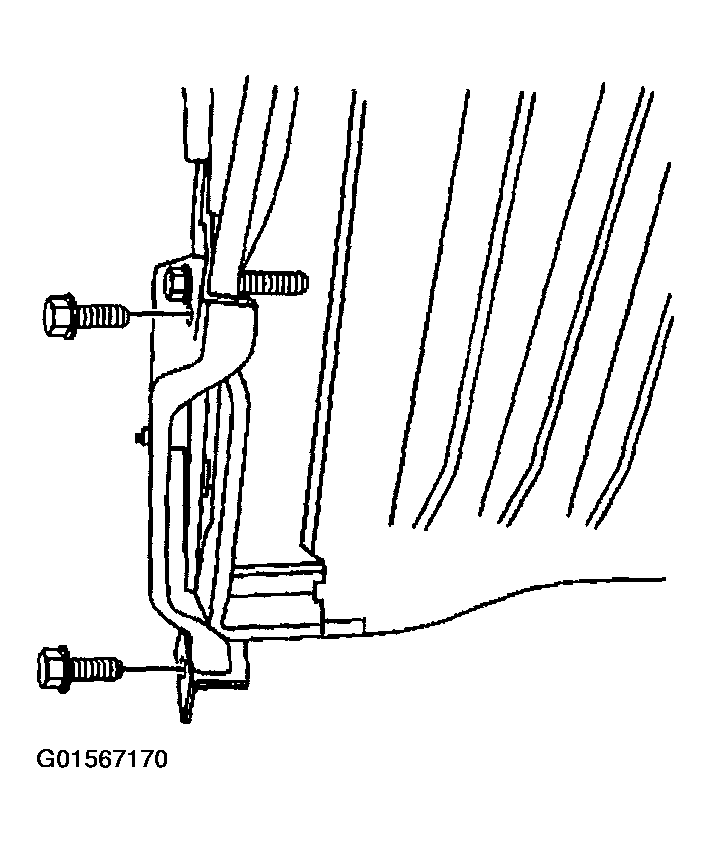

    Fig 1: Removing Right And Left Seat Back Frame Hinge Bolts - Rear (YC7)
    G01567170Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat back frame.

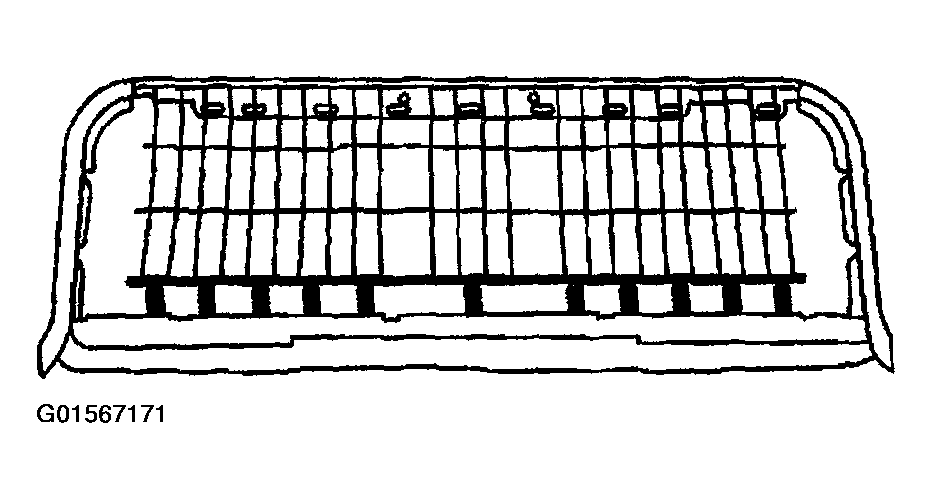

    Fig 2: Removing Seat Back Frame - Rear (YC7)
    G01567171Courtesy of GENERAL MOTORS CORP.
