Installation Procedure

  1. Install the seat back frame.

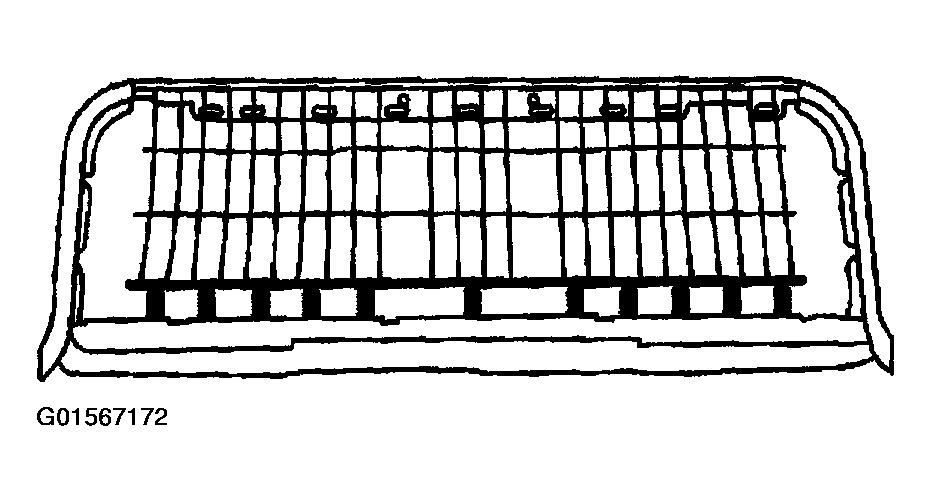

    Fig 1: Installing Seat Back Frame - Rear (YC7)
    G01567172Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts that retain the seat back frame to the seat back hinges in the locations noted during disassembly.

    Tighten

    Tighten the bolts that retain the seat back frame to the seat back hinges to 30 N.m (22 lb ft).

  3. Install the seat back cover and pad. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR  .
  4. Install the bench seat in the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .

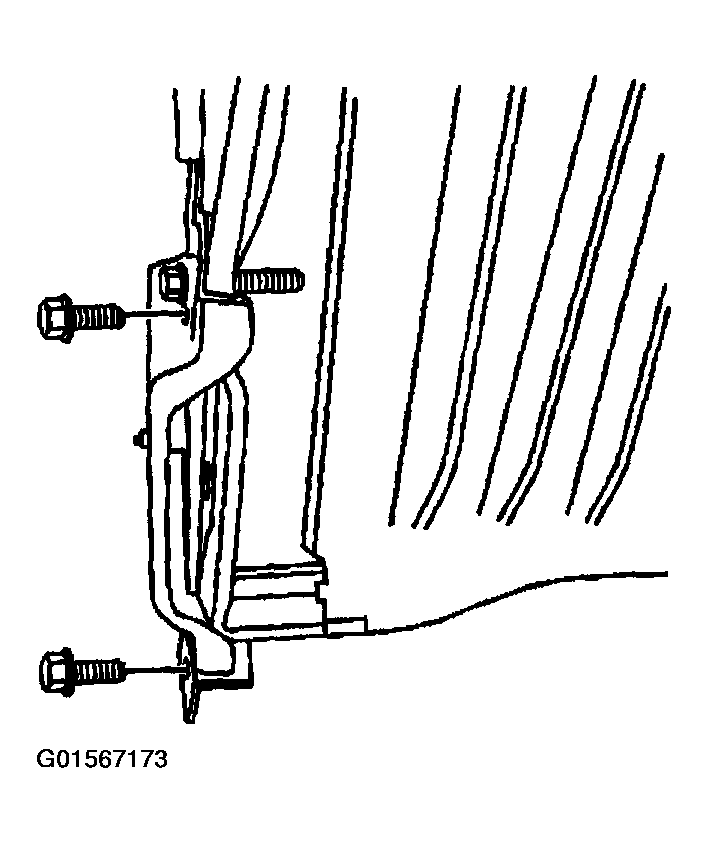

    Fig 2: Installing Right And Left Seat Back Frame Hinge Bolts - Rear (YC7)
    G01567173Courtesy of GENERAL MOTORS CORP.
