Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Repair Instructions >> Seat Back Frame Replacement - Rear (YC5 and YC6) >> Removal Procedure

Removal Procedure

  1. Remove the bench seat from the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
  2. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR (YC7)  .
  3. Remove the headrest bushing. Refer to BUCKET SEAT HEAD RESTRAINT BUSHING REPLACEMENT  .

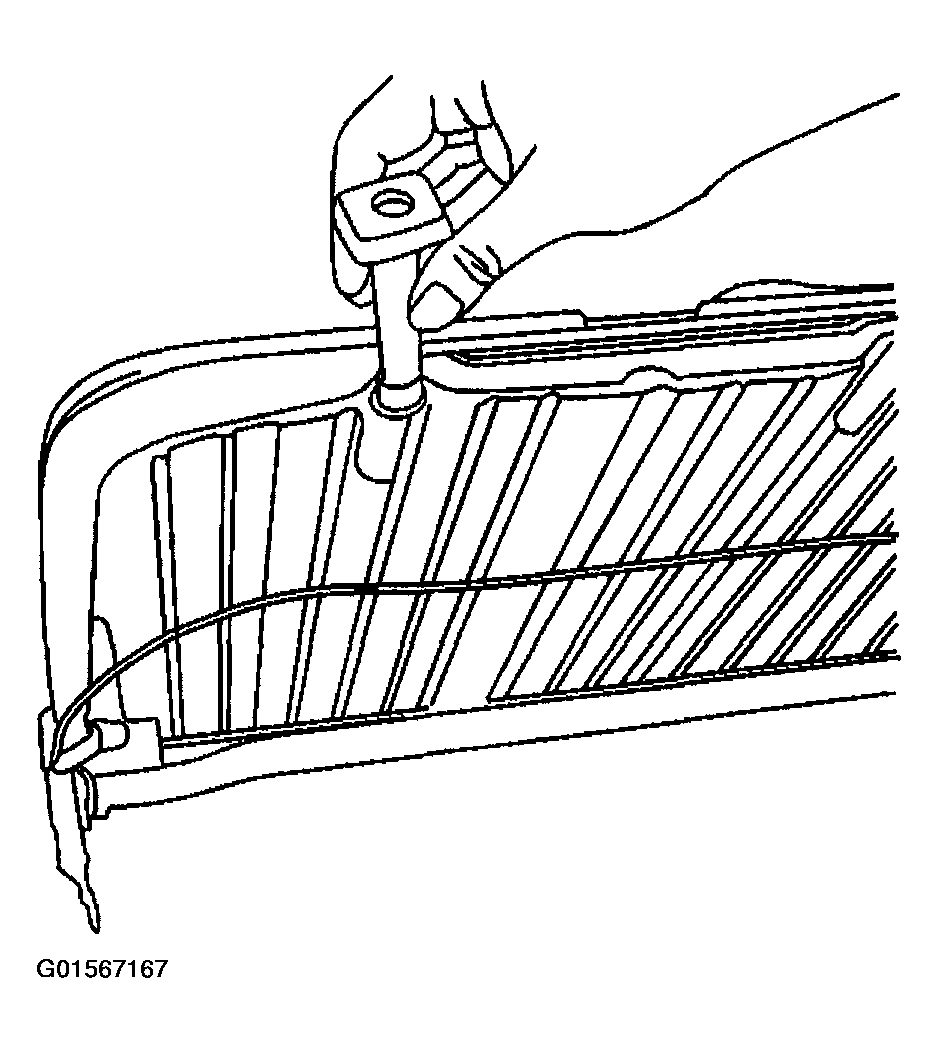

    Fig 1: Removing Headrest Bushings - Rear (YC5 And YC6)
    G01567167Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear seat latch release cable. Refer to SEAT BACK LATCH RELEASE CABLE REPLACEMENT - REAR  .

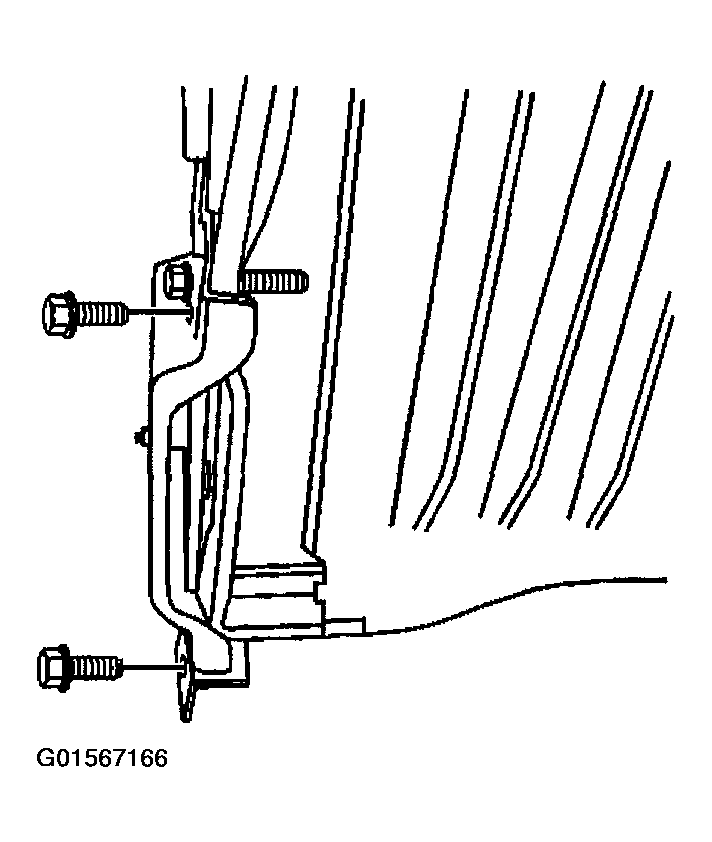

    Fig 2: Removing Right And Left Seat Back Frame Hinge Bolts - Rear (YC5 And YC6)
    G01567166Courtesy of GENERAL MOTORS CORP.
  5. Remove the right and left seat back frame hinge bolts.
  6. Remove the seat back frame.
