Installation Procedure

  1. Install the seat back frame.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the right and left seat back frame hinge bolts.

    Tighten

    Tighten the right and left seat back frame hinge bolts to 30 N.m (22 lb ft).

  3. Install the rear seat latch release cable. Refer to SEAT BACK LATCH RELEASE CABLE REPLACEMENT - REAR  .
  4. Install the headrest bushing. Refer to BUCKET SEAT HEAD RESTRAINT BUSHING REPLACEMENT

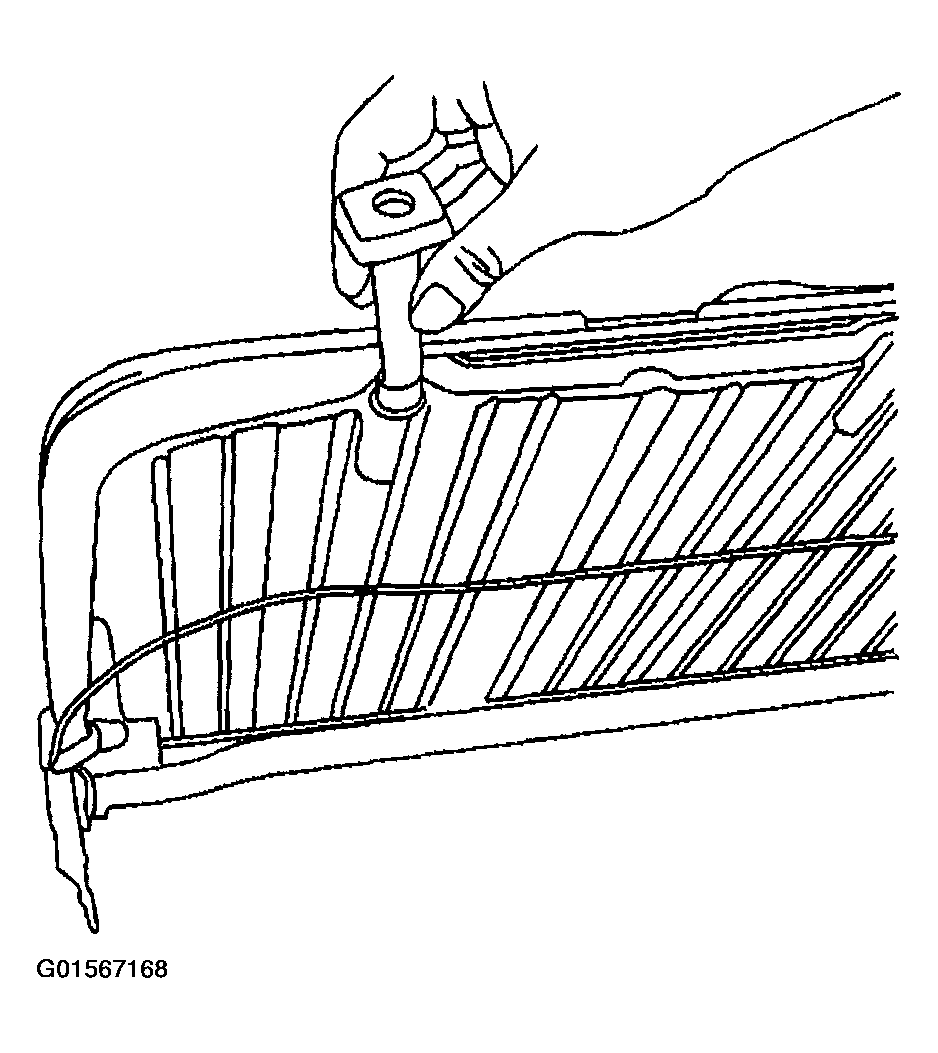

    Fig 1: Installing Headrest Bushings - Rear (YC5 And YC6)
    G01567168Courtesy of GENERAL MOTORS CORP.
  5. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR (YC7)  .
  6. Install the bench seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .

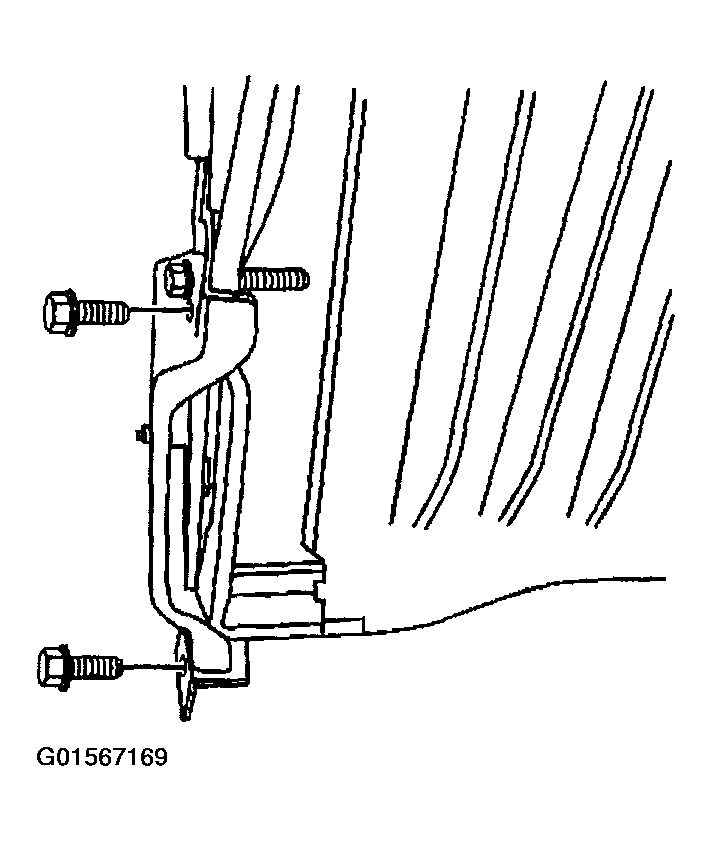

    Fig 2: Installing Right And Left Seat Back Frame Hinge Bolts - Rear (YC5 And YC6)
    G01567169Courtesy of GENERAL MOTORS CORP.
