Removal Procedure

  1. Remove the bucket seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT (YC7)  .
  3. Remove the lumbar support cable. Refer to LUMBAR SUPPORT CABLE REPLACEMENT  .
  4. Remove the bolts from the seat back hinges on the right and left side.

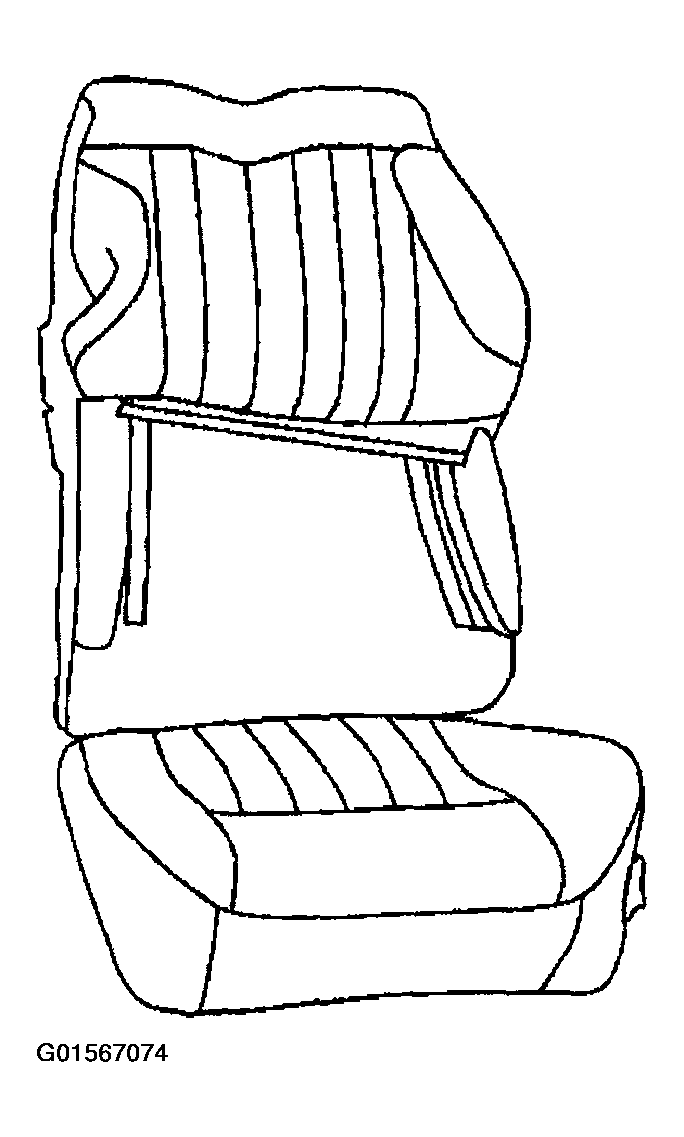

    Fig 1: Removing Seat Back Cover (Front)
    G01567074Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat back frame.

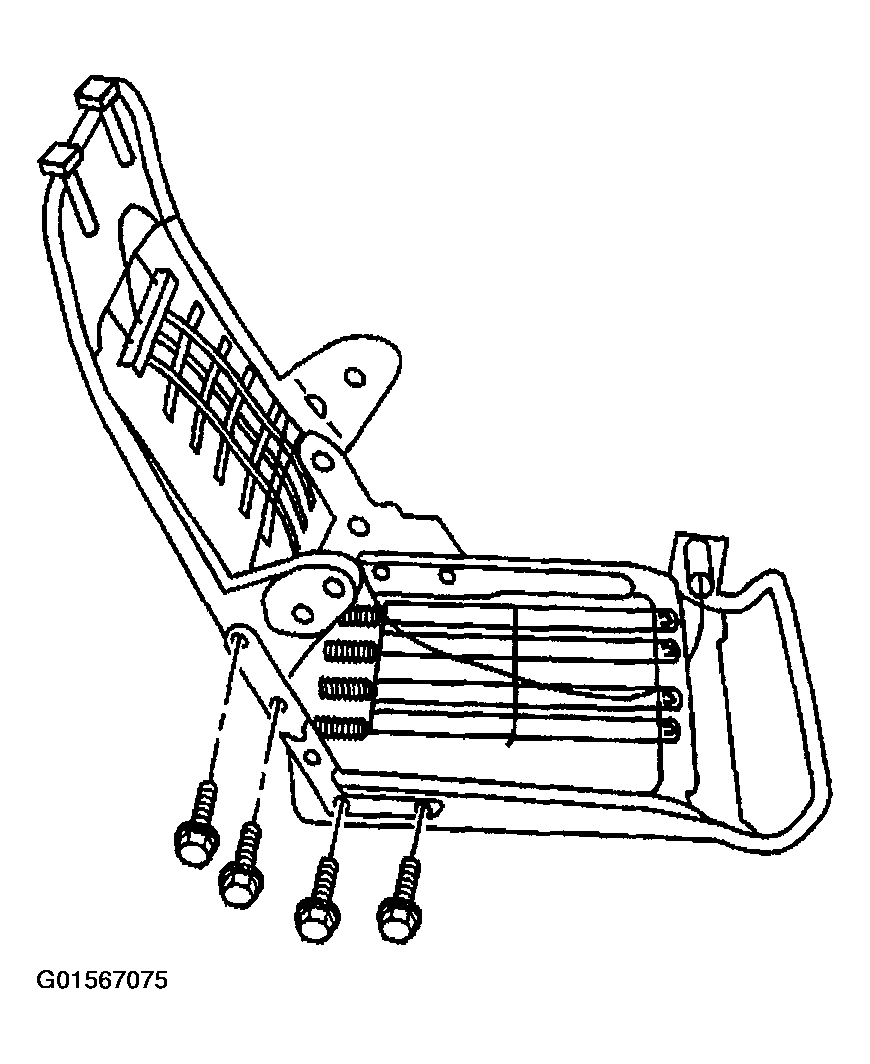

    Fig 2: Removing Seat Back Frame (Front)
    G01567075Courtesy of GENERAL MOTORS CORP.
