Installation Procedure

  1. Install the seat back frame.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts to the seat back hinges on the right and left side.

    Tighten

    Tighten the bolts to the seat back hinges on the right and left side to 30 N.m (22 lb in).

  3. Install the lumbar support cable. Refer to LUMBAR SUPPORT CABLE REPLACEMENT  .

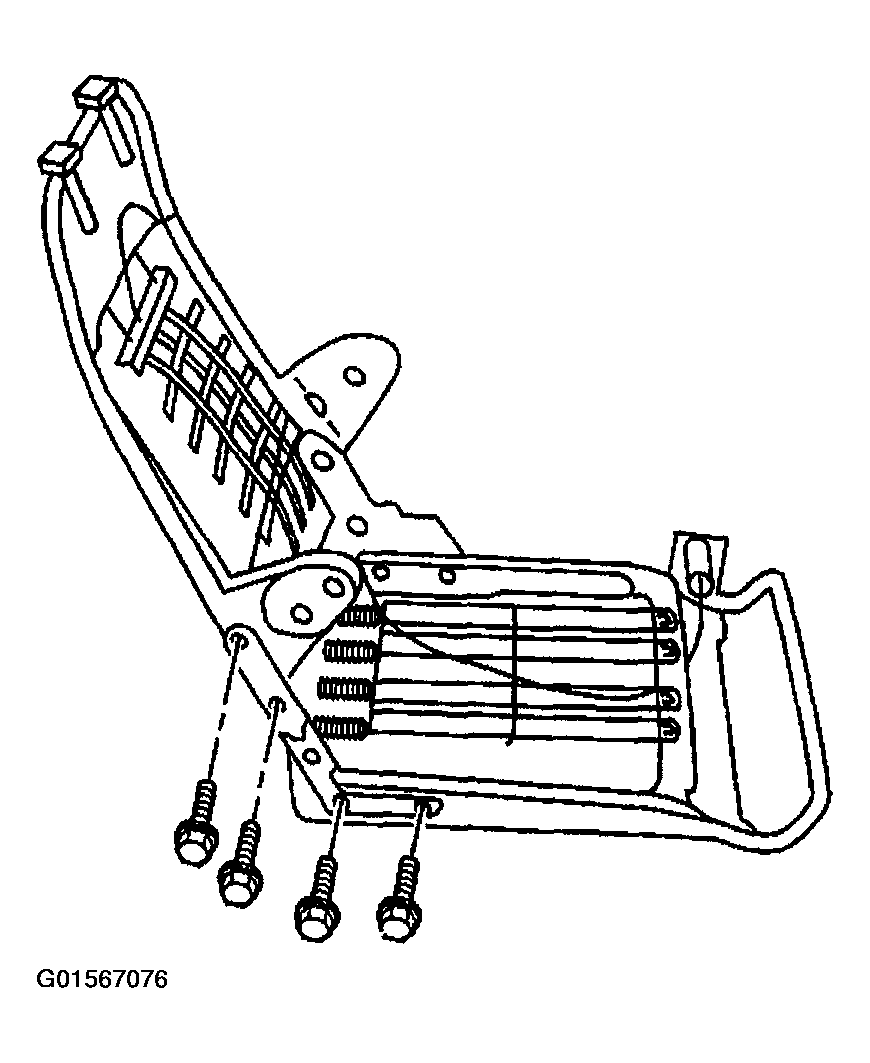

    Fig 1: Installing Seat Back Frame (Front)
    G01567076Courtesy of GENERAL MOTORS CORP.
  4. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT (YC7)  .
  5. Install the bucket seat in the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .

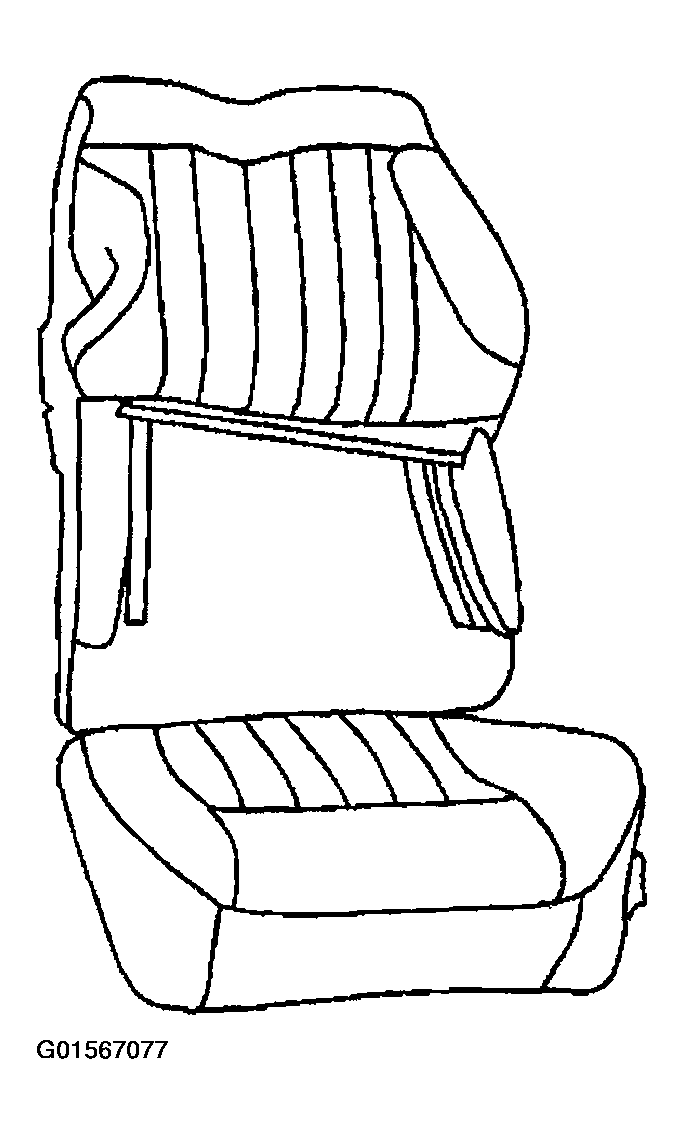

    Fig 2: Installing Seat Back Cover (Front)
    G01567077Courtesy of GENERAL MOTORS CORP.
