Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Repair Instructions >> Seat Back Cover and Pad Replacement - Rear (YC7) >> Removal Procedure

Removal Procedure

  1. Remove the rear bench seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
  2. Remove the rear seat headrest. Refer to HEAD RESTRAINT REPLACEMENT (YC6)  or HEAD RESTRAINT REPLACEMENT (YC7)  .
  3. Remove the rear seat armrests. Refer to ARMREST REPLACEMENT (YC6)  or ARMREST REPLACEMENT (YC7)  .
  4. Remove the J-hook along the bottom edge of the seat back.
    Fig 1: Identifying Seat Back
    G01567162Courtesy of GENERAL MOTORS CORP.
  5. Separate the J-hook fasteners that retain the sea back cover to the pad along the seat back break line.
  6. Remove the seat back cover and pad from the seat back.
  7. Remove the pad from the seat back frame.

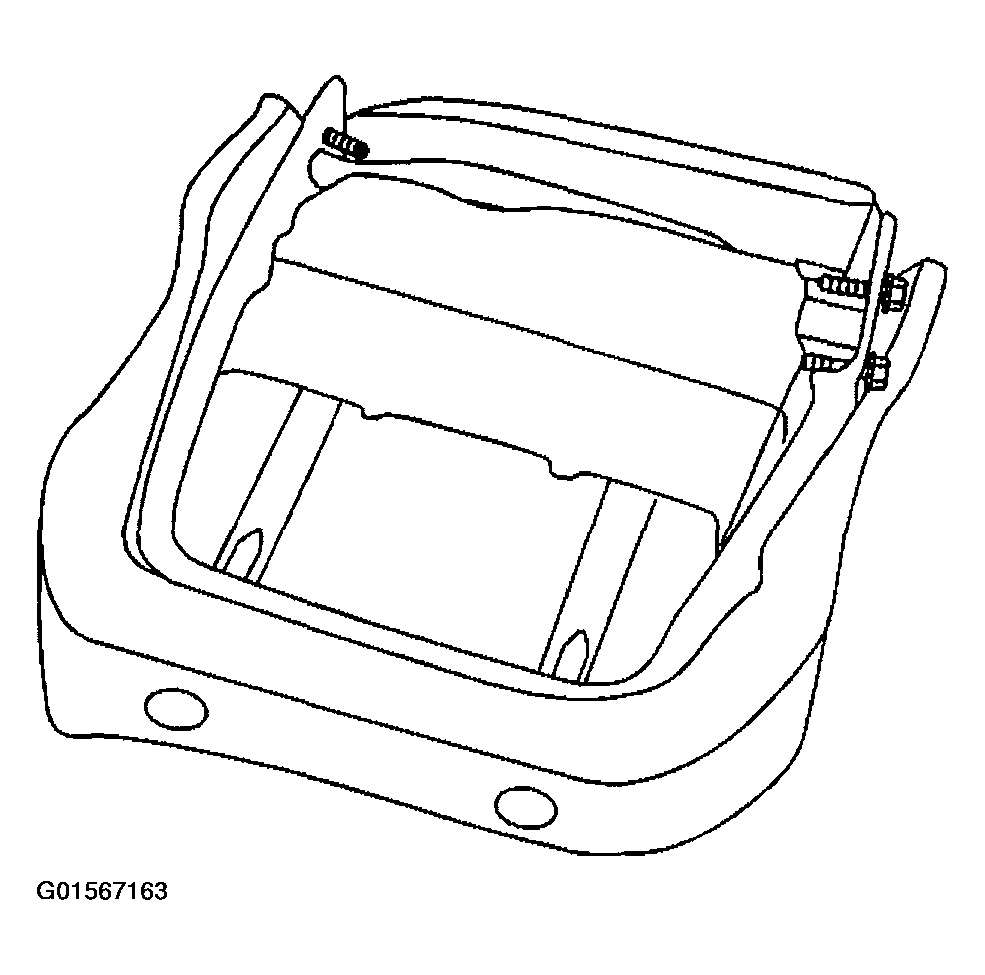

    Fig 2: Removing Pad From Seat Back Frame
    G01567163Courtesy of GENERAL MOTORS CORP.
