Installation Procedure

  1. Install the pad to the seat back frame.

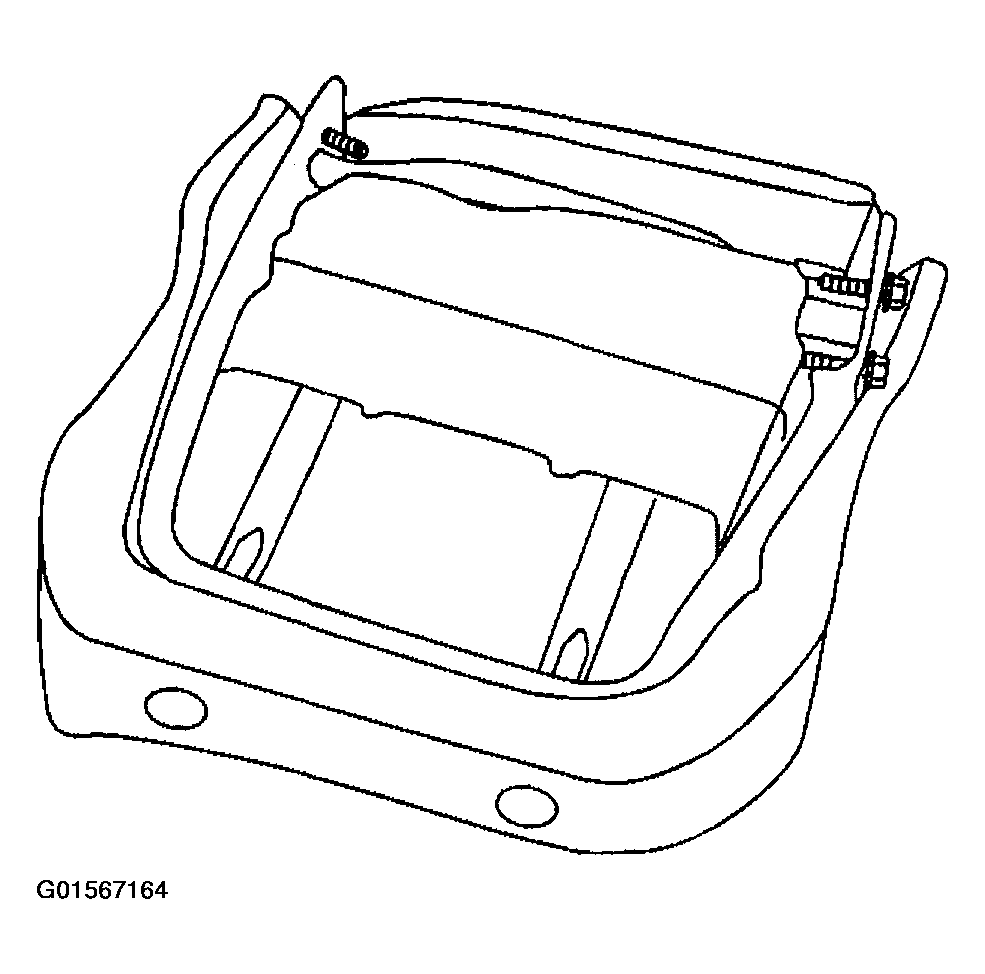

    Fig 1: Installing Pad To Seat Back Frame
    G01567164Courtesy of GENERAL MOTORS CORP.

    Important:  For the best finished appearance, proceed as follows when attaching the seat back cover to the pad:

  2. Install the seat back cover to the seat back.
    1. 2.1. Center the seat back cover on the pad.
    2. 2.2. Starting at the top and working down the sides, apply pressure along the break line in order to help attach the seat back cover to the J-hook to the frame and attach the hook and loop.
  3. Install the seat back to the frame and attach.
  4. Install the armrests. Refer to ARMREST REPLACEMENT (YC6)  or ARMREST REPLACEMENT (YC7)  .
  5. Install the headrests. Refer to HEAD RESTRAINT REPLACEMENT (YC6)  or HEAD RESTRAINT REPLACEMENT (YC7)  .
  6. Install the rear bench seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
    Fig 2: Identifying Seat Back
    G01567165Courtesy of GENERAL MOTORS CORP.
