Removal Procedure

  1. Remove the rear bench seat from the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
  2. Remove the headrests. Refer to HEAD RESTRAINT REPLACEMENT (YC6)  or HEAD RESTRAINT REPLACEMENT (YC7)  .
  3. Remove the rear seat armrests, if equipped. Refer to ARMREST REPLACEMENT - REAR SEAT (YC7)  or ARMREST REPLACEMENT - REAR SEAT (YC5 AND YC6)  .
  4. Remove the right and left seat back hinge. Refer to SEAT BACK HINGE TRIM REPLACEMENT - REAR RIGHT (YC6)  and SEAT BACK HINGE TRIM REPLACEMENT - REAR LEFT  .
  5. Remove the headrest bushings.

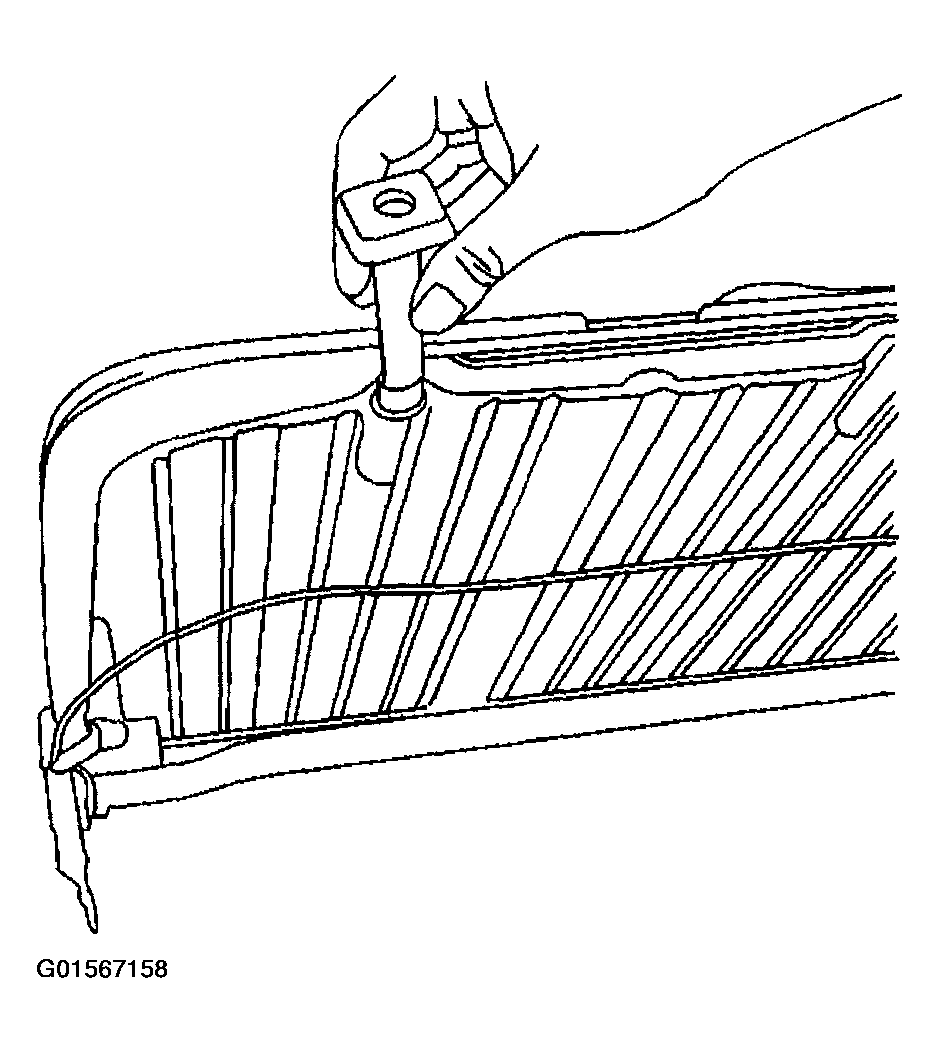

    Fig 1: Removing Headrest Bushings
    G01567158Courtesy of GENERAL MOTORS CORP.
  6. Unzip the seat back cover.
  7. Remove the seat back cover and pad from the seat back frame.

    Important:  Note the locations of the hog rings. This will assist with reassembly.

  8. Remove the hog rings that retain the seat back cover to the pad.
  9. Remove the seat back cover from the pad.
    Fig 2: Removing Seat Back Cover From Pad
    G01567159Courtesy of GENERAL MOTORS CORP.
