Installation Procedure

  1. Install the seat back cover to the pad.

    Important:  Note install the hog rings in the locations noted during disassembly.

  2. Install the hog rings in order to retain the seat back cover to the pad.
  3. Install the seat back cover and pad to the seat back frame.
  4. Zip the seat back cover closed.
    Fig 1: Installing Seat Back Cover To Pad
    G01567160Courtesy of GENERAL MOTORS CORP.
  5. Press the headrest bushings into place.

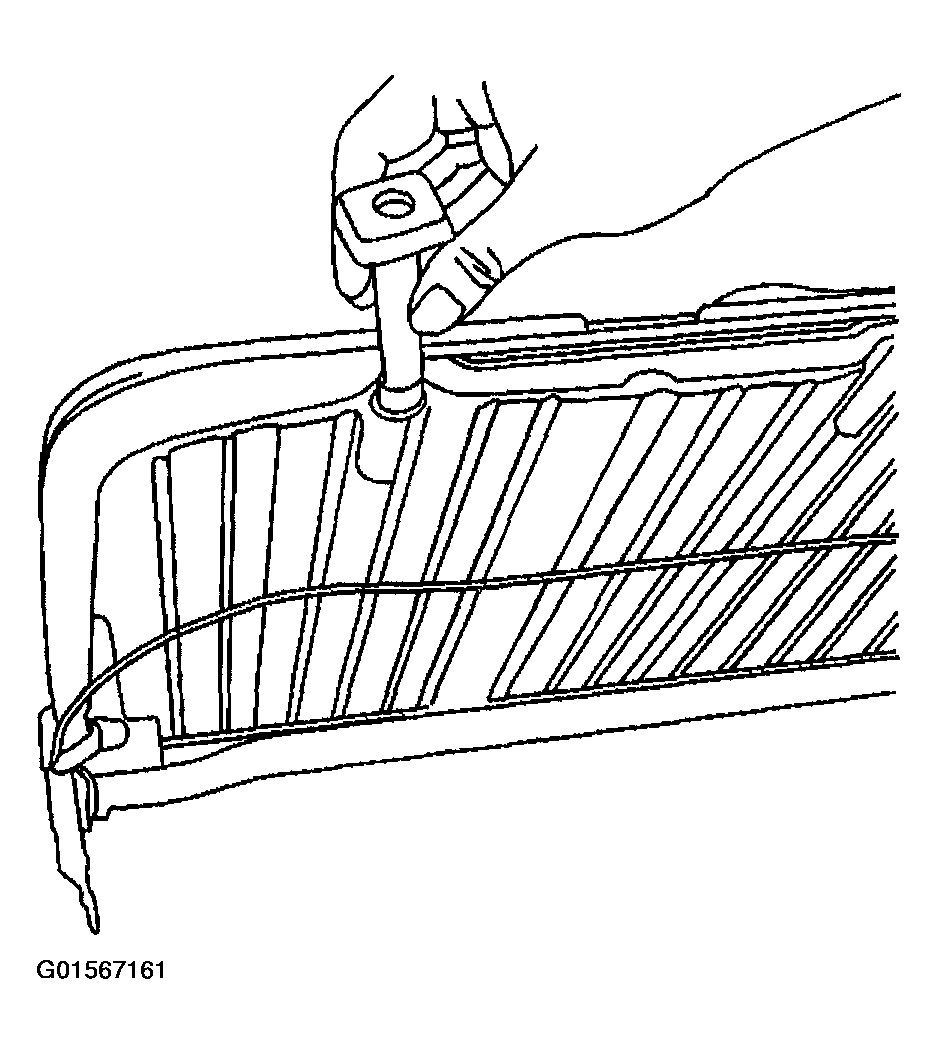

    Fig 2: Installing Headrest Bushings
    G01567161Courtesy of GENERAL MOTORS CORP.
  6. Install the right and left seat back hinge. Refer to SEAT BACK HINGE TRIM REPLACEMENT - REAR RIGHT (YC6)  and SEAT BACK HINGE TRIM REPLACEMENT - REAR LEFT  .
  7. Install the rear seat armrests, if equipped. Refer to ARMREST REPLACEMENT - REAR SEAT (YC7)  or ARMREST REPLACEMENT - REAR SEAT (YC5 AND YC6)  .
  8. Install the headrests. Refer to HEAD RESTRAINT REPLACEMENT (YC6)  or HEAD RESTRAINT REPLACEMENT (YC7)  .
  9. Install the rear bench seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
