Removal Procedure

  1. Remove the bucket seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the headrest. Refer to HEAD RESTRAINT REPLACEMENT (YC6)  or HEAD RESTRAINT REPLACEMENT (YC7)  .
  3. Remove the armrests. Refer to ARMREST REPLACEMENT (YC6)  or ARMREST REPLACEMENT (YC7)  .
  4. Disconnect the hook-and-loop fasteners that retain the seat cushion cover to the pad along the seat back break line.
  5. Remove the seat back cover and pad from the seat back.

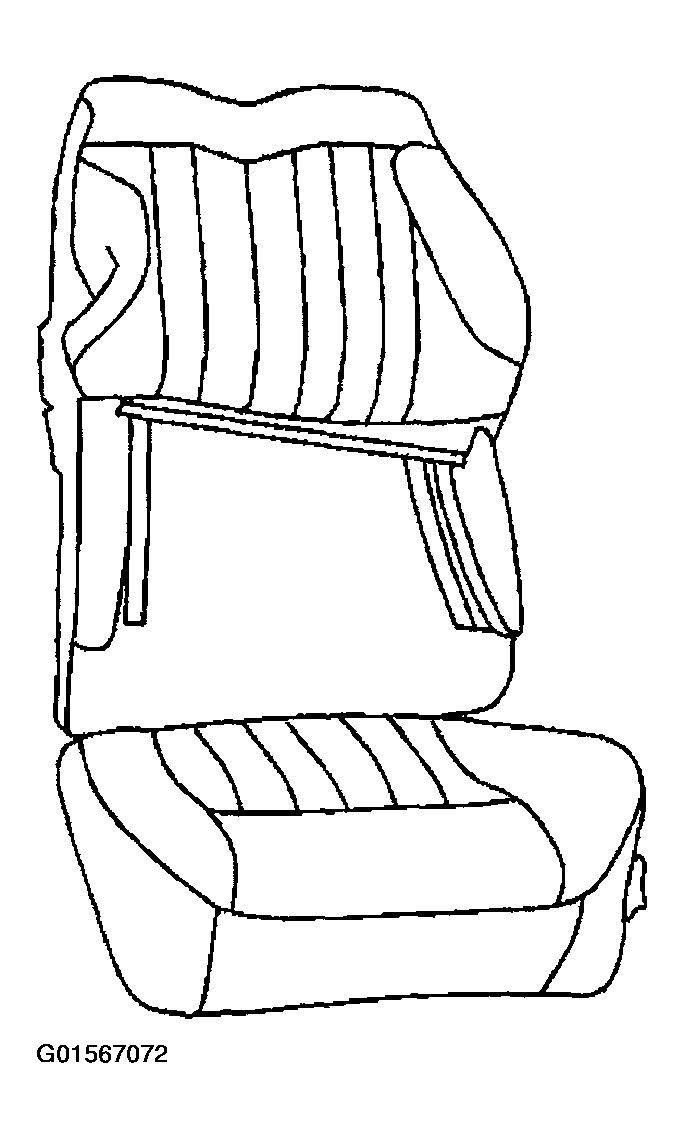

    Fig 1: Removing Seat Back Cover (YC7)
    G01567072Courtesy of GENERAL MOTORS CORP.
