Installation Procedure

Important:  For the best finished appearance when attaching the seat back cover to the pad, proceed as follows:

1. Install the seat back pad to the seat back frame.
2. Center the seat back cover on the pad.
3. Starting at the top and working down the sides, apply pressure along the break line. This helps attach the seat back cover to the J-hook fasteners.
4. Reset the hook-and-loop fasteners that retain the seat back cushion to the pad.
5. Install the armrests. Refer to ARMREST REPLACEMENT (YC6)  or ARMREST REPLACEMENT (YC7)  .
6. Install the headrest. Refer to HEAD RESTRAINT REPLACEMENT (YC6)  or HEAD RESTRAINT REPLACEMENT (YC7)  .
7. Install the bucket seat in the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .

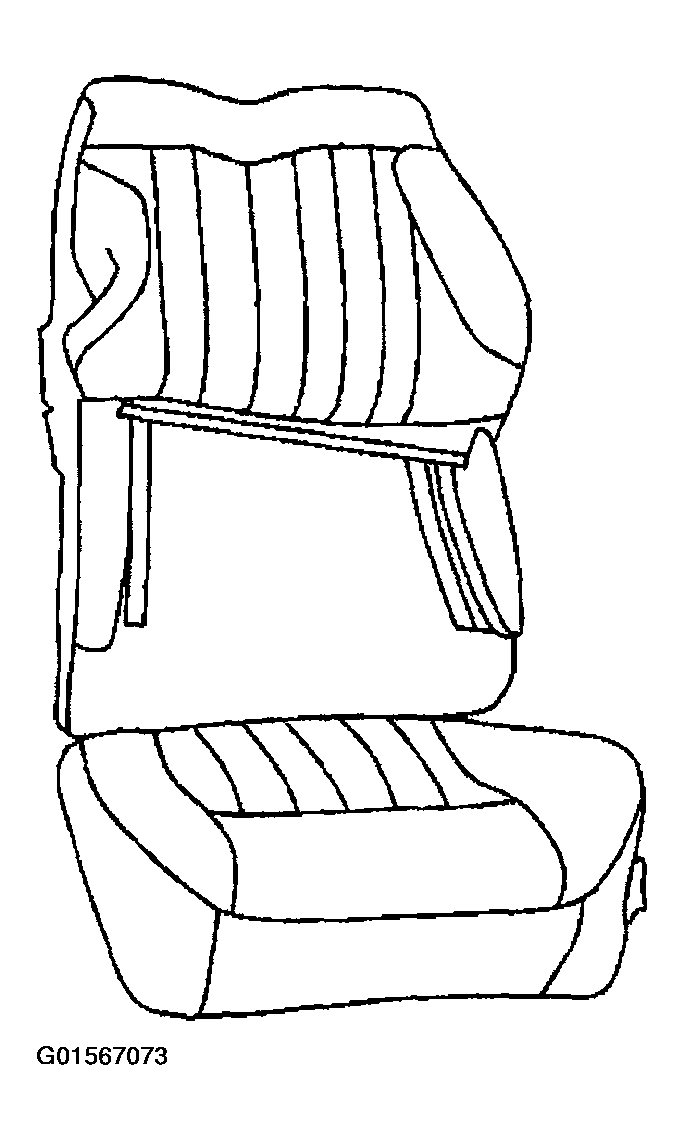

   Fig 1: Installing Seat Back Cover (YC7)

   Courtesy of GENERAL MOTORS CORP.
