Removal Procedure

  1. Remove the bucket seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the armrests. Refer to ARMREST REPLACEMENT (YC6)  or ARMREST REPLACEMENT (YC7)  .
  3. Disconnect the J-hook fasteners at the bottom corners of the seat back.
  4. Remove the seat back cover and pad from the seat back frame.
    Fig 1: View Of Seat Back Cover (YC5 And YC6)
    G01567066Courtesy of GENERAL MOTORS CORP.

    Important:  Note the locations of the hog rings. This will assist with reassembly.

  5. Remove the hog rings that retain the seat back cover to the pad.
    Fig 2: Removing Seat Back Cover And Pad From Seat Back Frame (YC5 And YC6)
    G01567067Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat back cover from the pad.

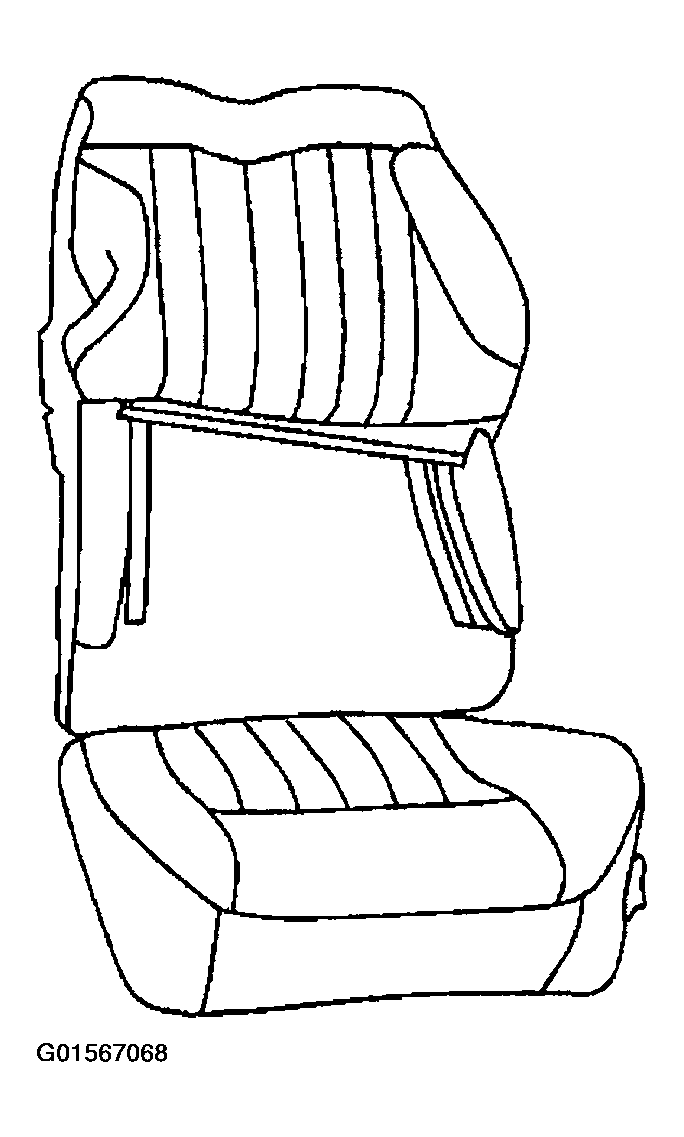

    Fig 3: Removing Seat Back Cover From Pad (YC5 And YC6)
    G01567068Courtesy of GENERAL MOTORS CORP.
