Installation Procedure

  1. Install the seat back cover to the pad.

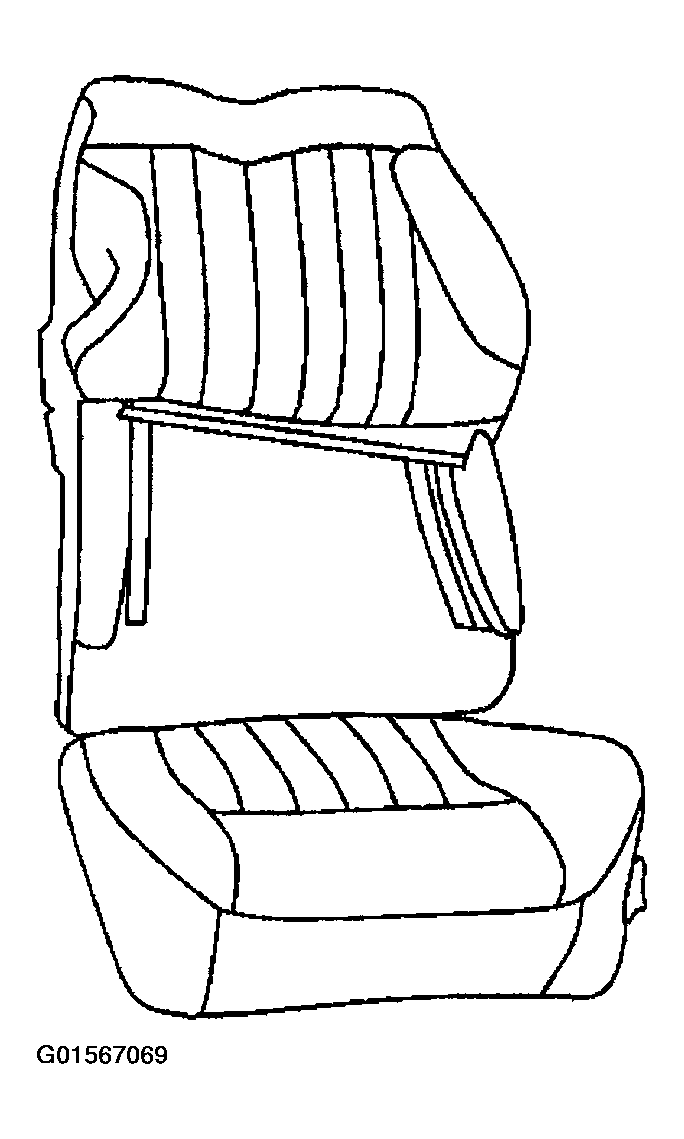

    Fig 1: Installing Seat Back Cover To Pad (YC5 And YC6)
    G01567069Courtesy of GENERAL MOTORS CORP.

    Important:  Install the hog rings that retain the seat back cover to the pad in the locations noted during disassembly.

  2. Install the hog rings to seat back cover to the pad.
    Fig 2: Installing Seat Back And Pad To Seat Back Frame (YC5 And YC6)
    G01567070Courtesy of GENERAL MOTORS CORP.
  3. Install the seat back and pad to the seat back frame.
  4. Connect the J-hook fasteners at the bottom corner of the seat back.
  5. Install the armrests. Refer to ARMREST REPLACEMENT (YC6)  or ARMREST REPLACEMENT (YC7)  .
  6. Install the bucket seat in the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
    Fig 3: View Of Seat Back Cover (YC5 And YC6)
    G01567071Courtesy of GENERAL MOTORS CORP.
