Removal Procedure

  1. Remove the bucket seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Place the seat on a clean, prepared surface.
  3. Remove the 8 nuts that retain the riser to the adjuster.
  4. Remove the riser from the adjuster.
  5. Remove the 4 bolts that retain the adjuster to the seat.
  6. Position the seat trim panel(s) in order to disconnect the power seat switch connector.
  7. Partially separate the adjuster from the seat in order to remove the seat trim panels from the assembly.
  8. Remove the adjuster from the seat.

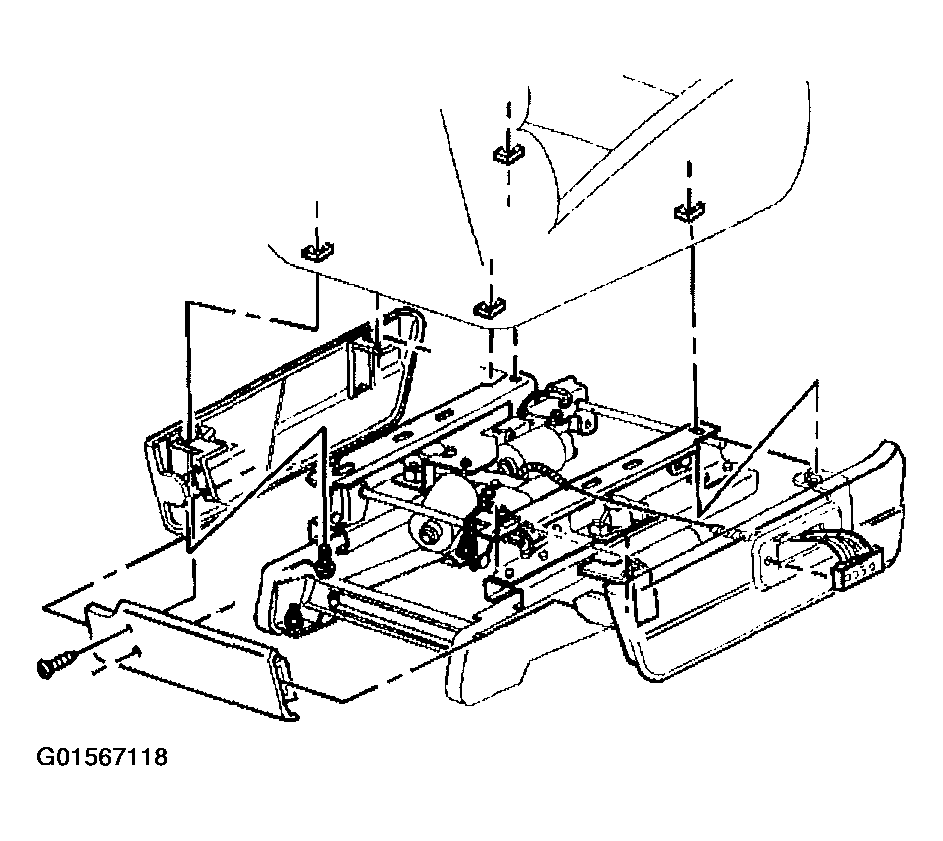

    Fig 1: Removing Adjuster From Seat
    G01567118Courtesy of GENERAL MOTORS CORP.
