Installation Procedure

  1. Position the seat trim panel L bracket flanges between the adjuster and the seat.

    Ensure that the holes in the L bracket flanges are indexed with the fastener holes on the adjuster and the seat.

  2. Connect the electrical connector on the back of the power seat switch.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 4 bolts that retain the adjuster to the seat.

    Tighten

    Tighten the bolts that retain the adjuster to the seat to 30 N.m (22 lb ft).

  4. Position the riser to the adjuster.
  5. Install the 8 nuts that retain the riser to the adjuster.

    Tighten

    Tighten the nuts that retain the adjuster to the seat to 9 N.m (7 lb ft).

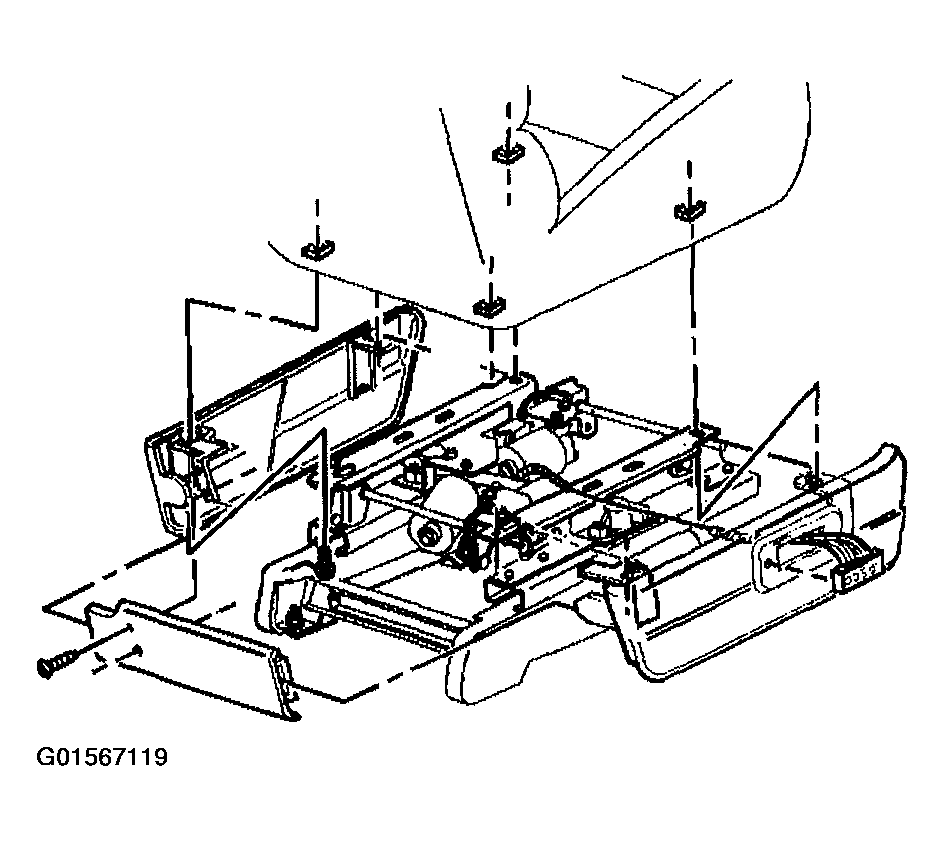

    Fig 1: Installing Adjuster To The Seat
    G01567119Courtesy of GENERAL MOTORS CORP.
  6. Install the seat to the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
