Removal Procedure

  1. Rotate the lumbar support knob while pushing in on the seat cushion cover around the knob. This will cause the clip that retains the knob to thread through to the outside of the seat cushion cover.
  2. Remove the clip from the knob.
  3. Remove the lumbar support knob from the seat.

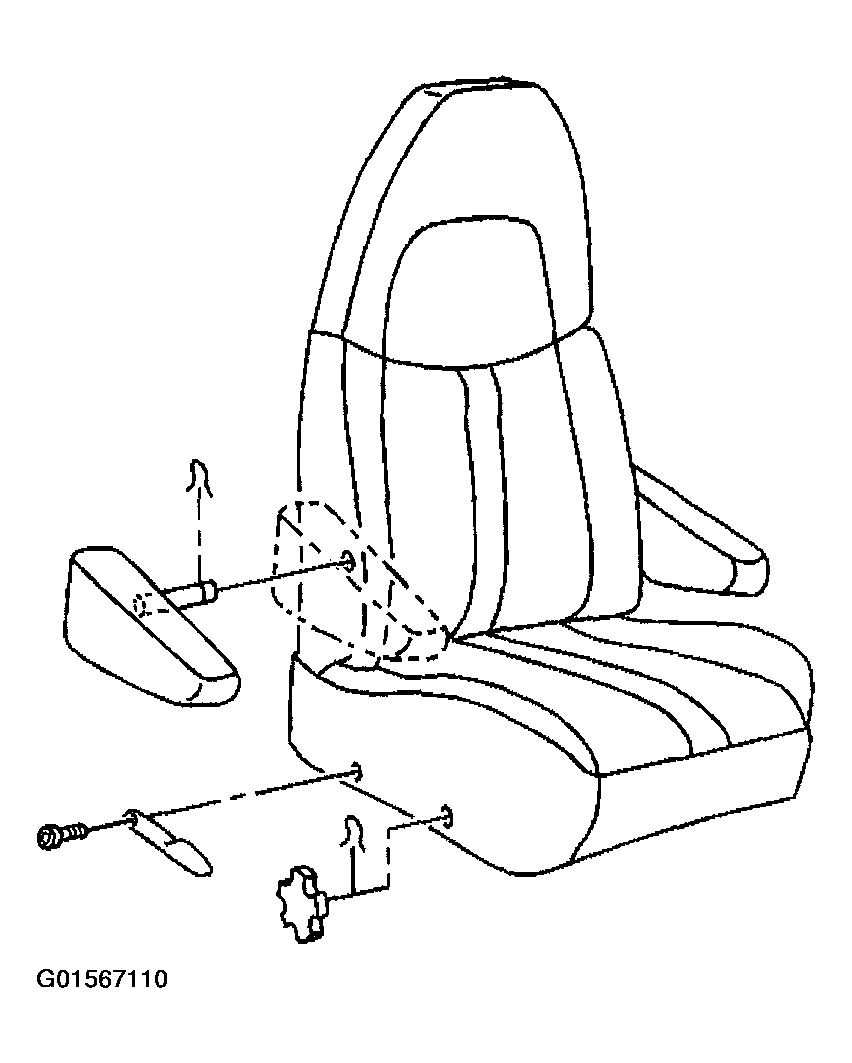

    Fig 1: Removing Lumbar Support Knob From Seat
    G01567110Courtesy of GENERAL MOTORS CORP.
