Installation Procedure

  1. Install the lumbar support knob to the seat.
  2. Install the lumbar support knob retaining clip.
  3. Rotate the knob in order to thread the clip from the outside of the trim cover to the inside of the seat cushion cover.

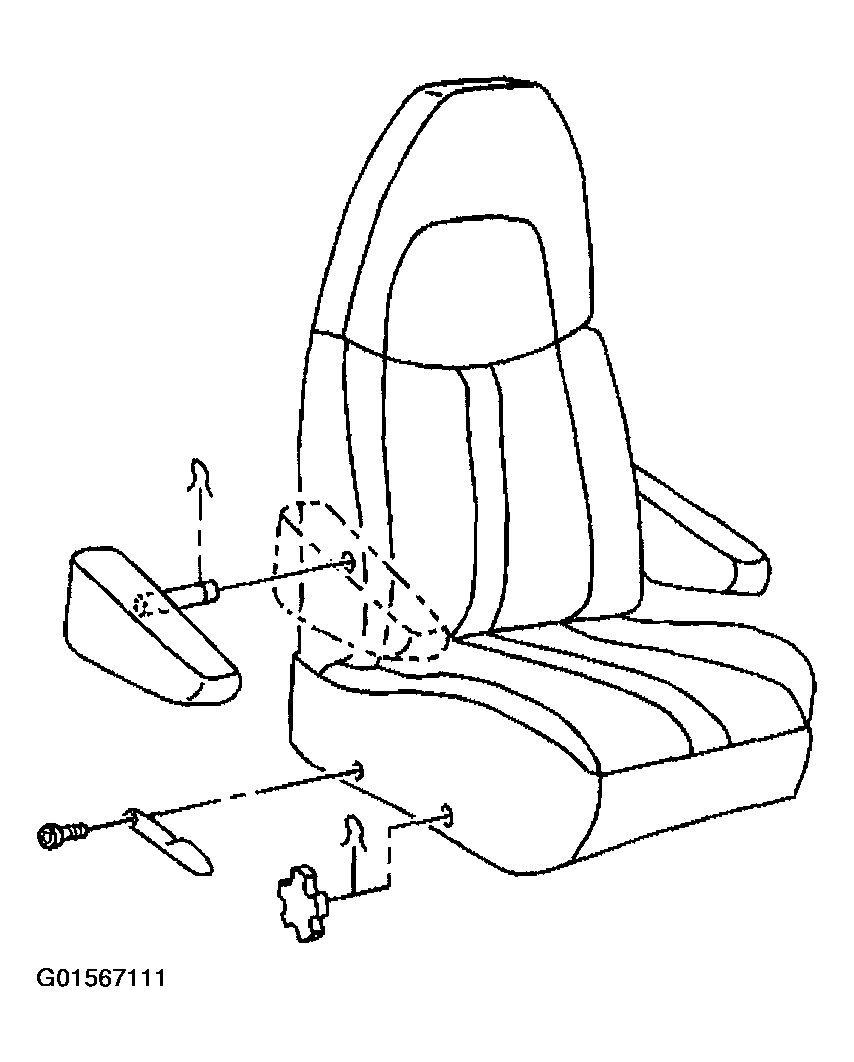

    Fig 1: Installing Lumbar Support Knob To The Seat
    G01567111Courtesy of GENERAL MOTORS CORP.
