Removal Procedure

  1. Remove the bucket seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the seat back cover and pad from the seat back frame. Refer to SEAT BACK COVER AND PAD REPLACEMENT (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT (YC7)  .
  3. Disconnect the lumbar plate cable (1) from the lumbar plate.

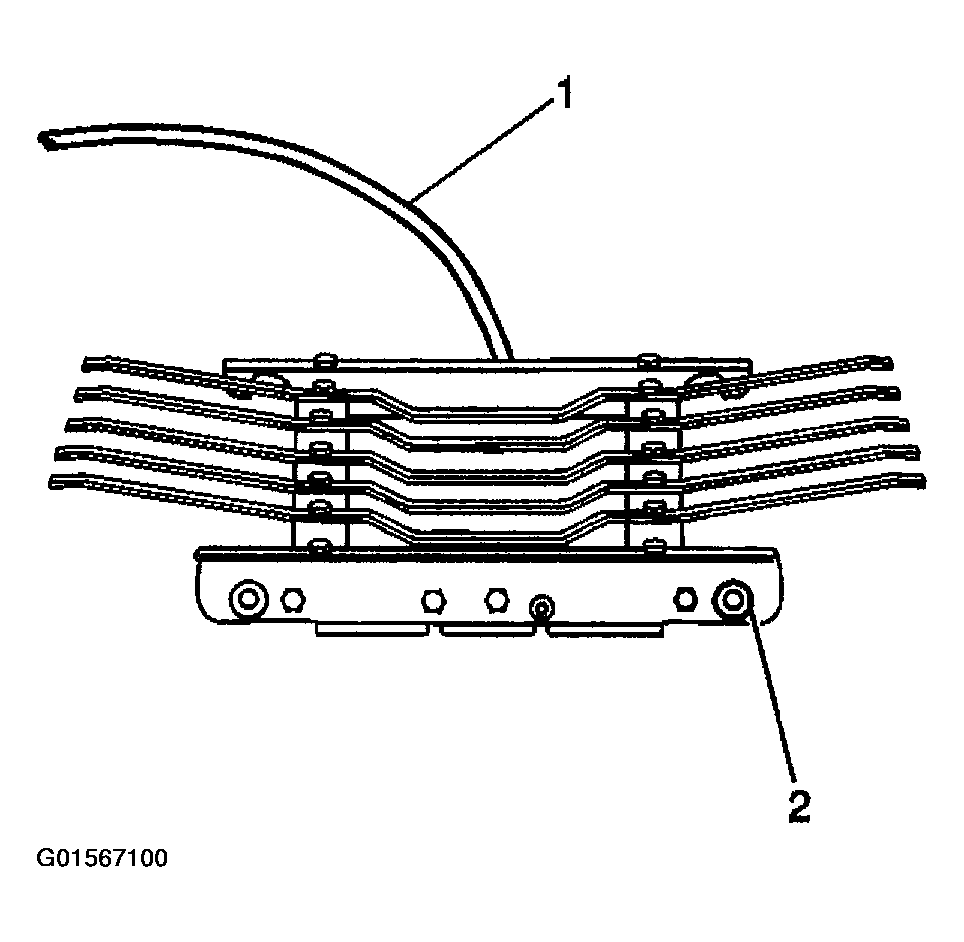

    Fig 1: Disconnecting Lumbar Plate Cable From Lumbar Plate
    G01567100Courtesy of GENERAL MOTORS CORP.
  4. Pull rearward on the lumbar plate corners to release it from the seat back frame.

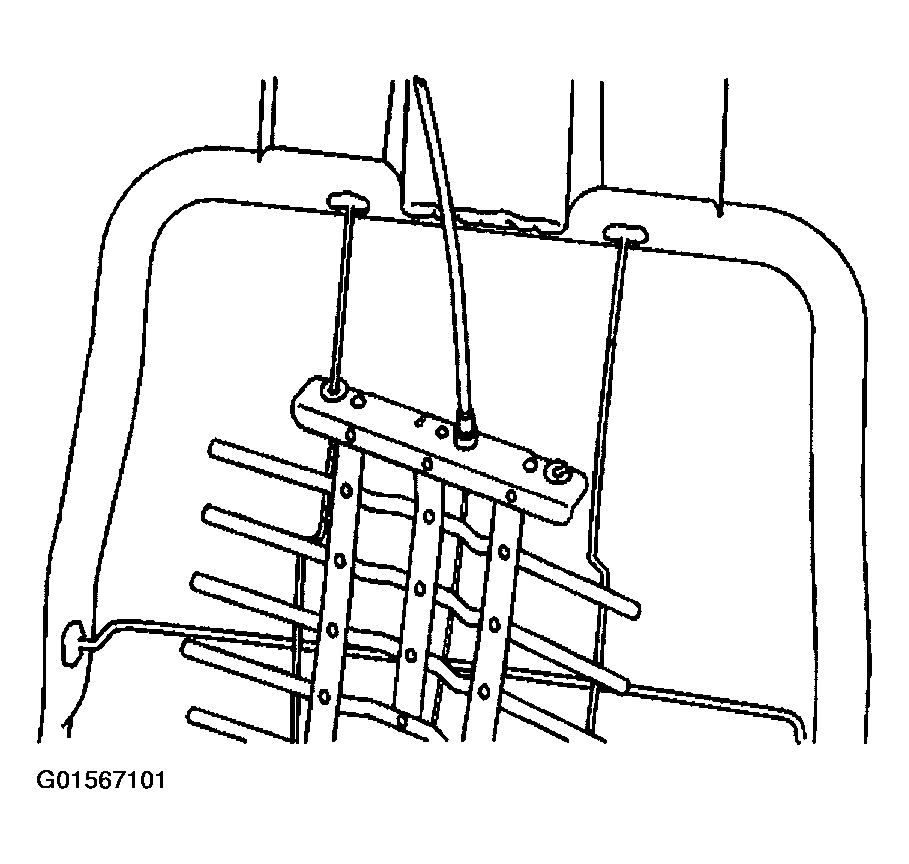

    Fig 2: Releasing Lumbar Plate Corners From Seat Back Frame
    G01567101Courtesy of GENERAL MOTORS CORP.
  5. Remove the lumbar plate from the seat back frame.
  6. Remove the bucket seat cushion cover and pad. Refer to SEAT CUSHION COVER REPLACEMENT - FRONT (YC5 AND YC6)  or SEAT CUSHION COVER REPLACEMENT - FRONT (YC7)  .
    Fig 3: Removing Lumbar Plate From Seat Back Frame
    G01567102Courtesy of GENERAL MOTORS CORP.
  7. Remove the lumbar support cable clip.
  8. Remove the lumbar support cable from the side of the bucket seat cushion frame.

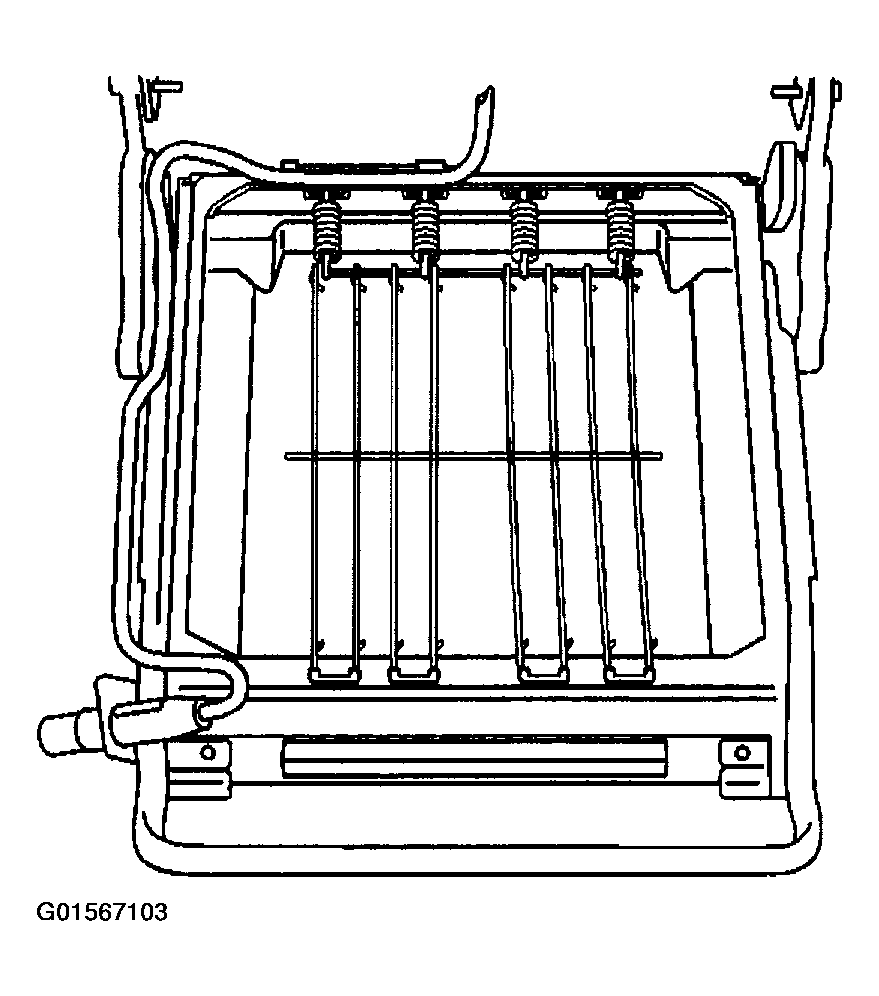

    Fig 4: Removing Lumbar Support Cable From Side Of Bucket Seat Cushion Frame
    G01567103Courtesy of GENERAL MOTORS CORP.
  9. Remove the lumbar support cable and housing from the bucket seat cushion frame.

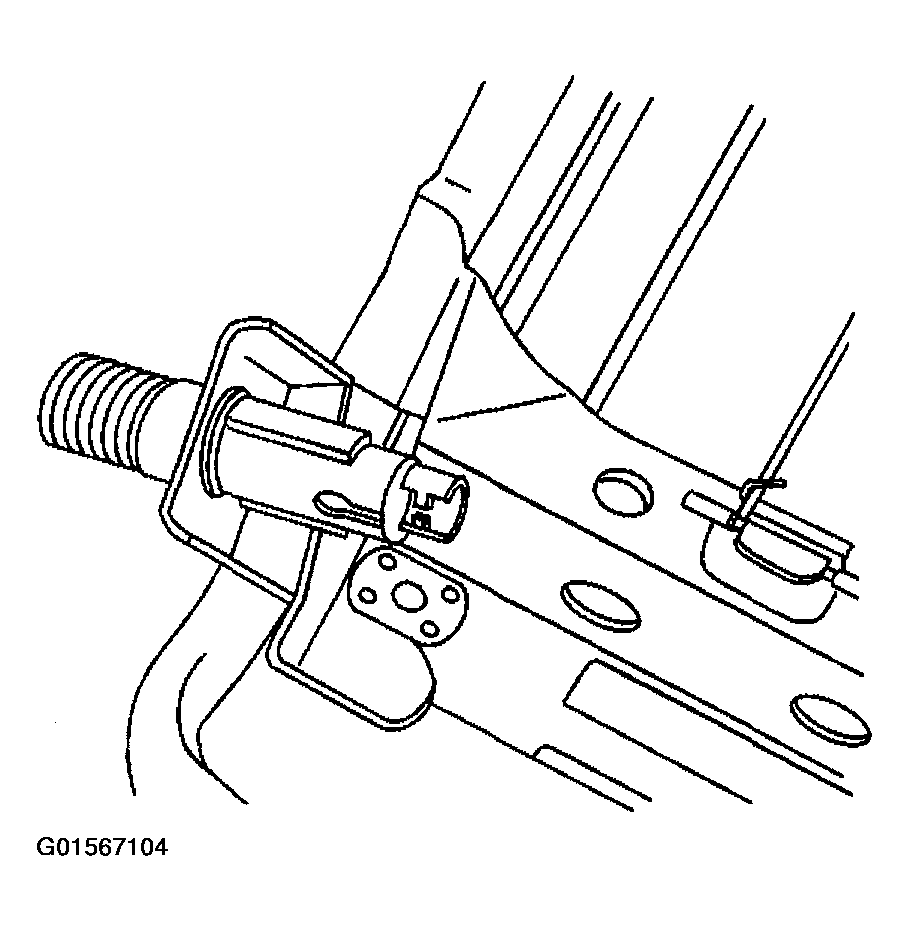

    Fig 5: Removing Lumbar Support Cable And Housing From Bucket Seat Cushion Frame
    G01567104Courtesy of GENERAL MOTORS CORP.
