Removal Procedure

  1. Remove the bucket seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the seat back cover and pad from the seat back frame. Refer to SEAT BACK COVER AND PAD REPLACEMENT (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT (YC7)  .

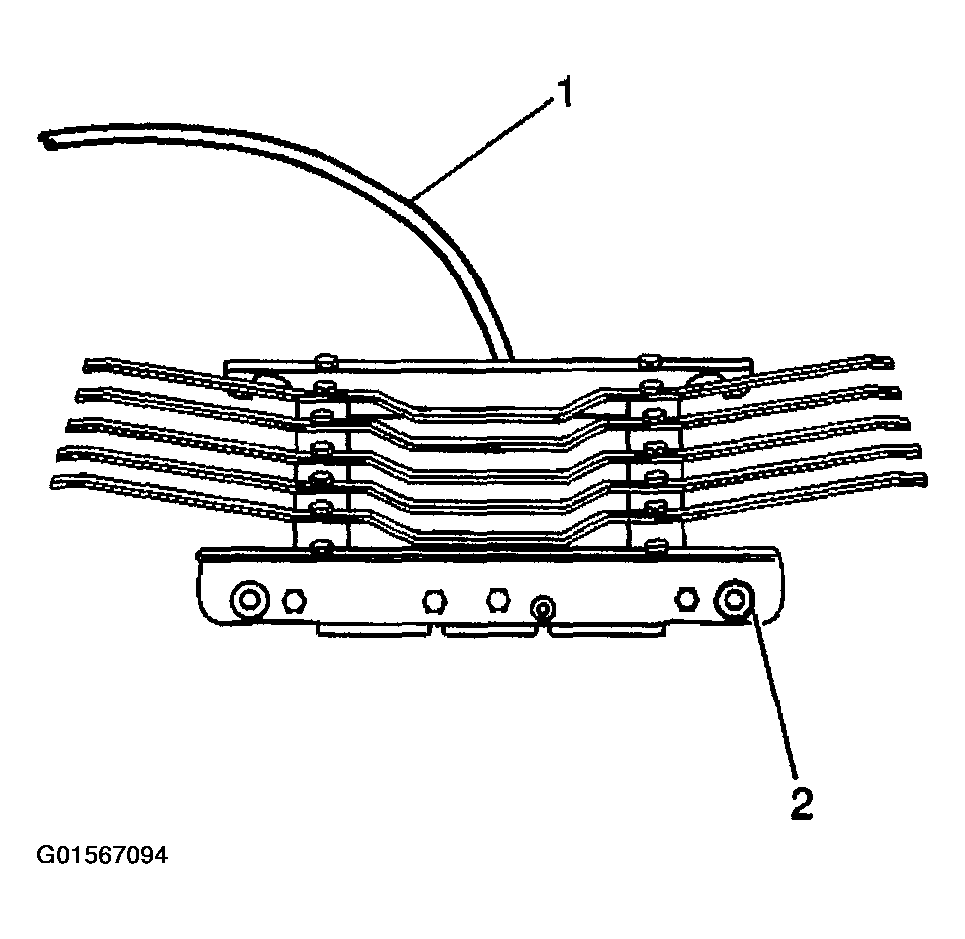

  3. Disconnect the lumbar plate cable (1) from the lumbar plate.
    Fig 1: Disconnecting Lumbar Plate Cable From Lumbar Plate
    G01567094Courtesy of GENERAL MOTORS CORP.

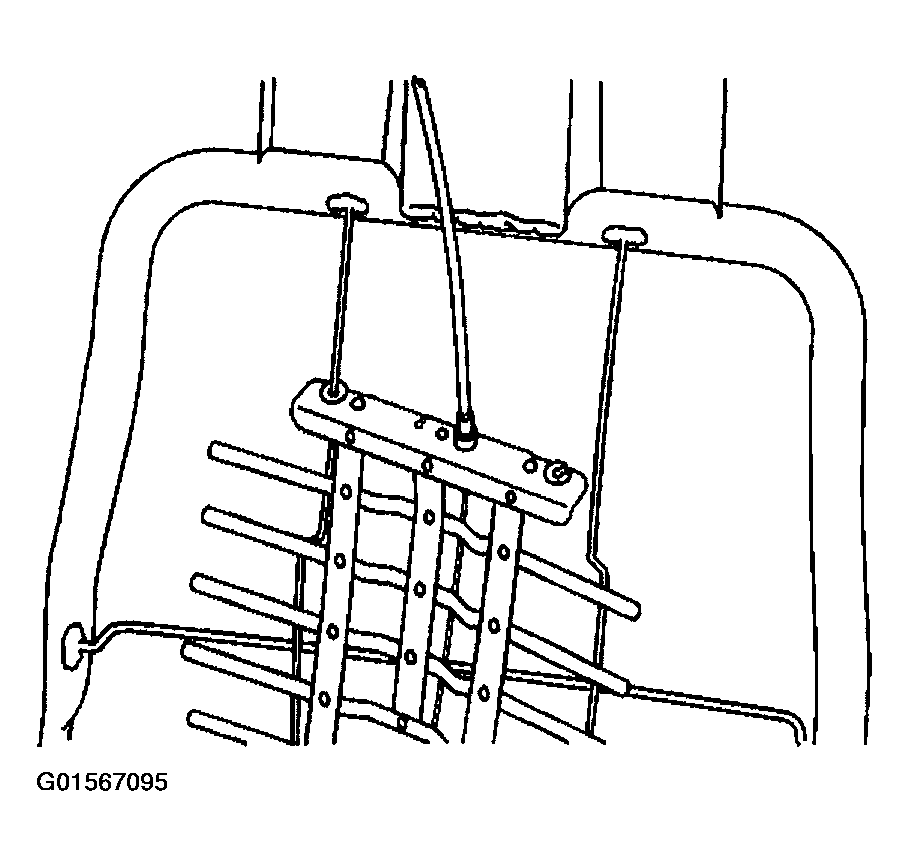

  4. Pull rearward on the lumbar plate corners to release it from the seat back frame.
    Fig 2: Releasing Lumbar Plate Corners From Seat Back Frame
    G01567095Courtesy of GENERAL MOTORS CORP.
  5. Remove the lumbar plate from the seat back frame.
    Fig 3: Removing Lumbar Plate From Seat Back Frame
    G01567096Courtesy of GENERAL MOTORS CORP.
