Installation Procedure

  1. Install the lumbar plate to the seat back frame.
    Fig 1: Installing Lumbar Plate To Seat Back Frame
    G01567097Courtesy of GENERAL MOTORS CORP.
  2. Snap the corners of the lumbar plate to the seat back frame.

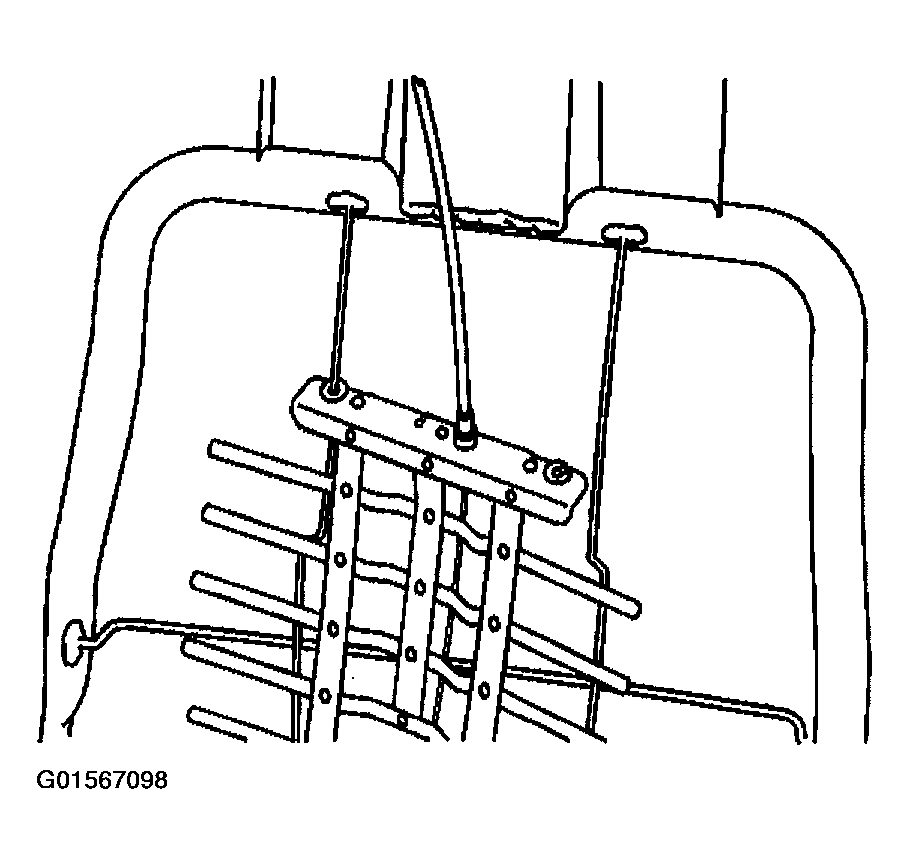

    Fig 2: Snapping Corners Of Lumbar Plate To Seat Back Frame
    G01567098Courtesy of GENERAL MOTORS CORP.
  3. Install the lumbar plate cable (1) to the lumbar plate.
  4. Install the seat back cover and pad to the seat back frame. Refer to SEAT BACK COVER AND PAD REPLACEMENT (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT (YC7)  .
  5. Install the bucket seat in the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .

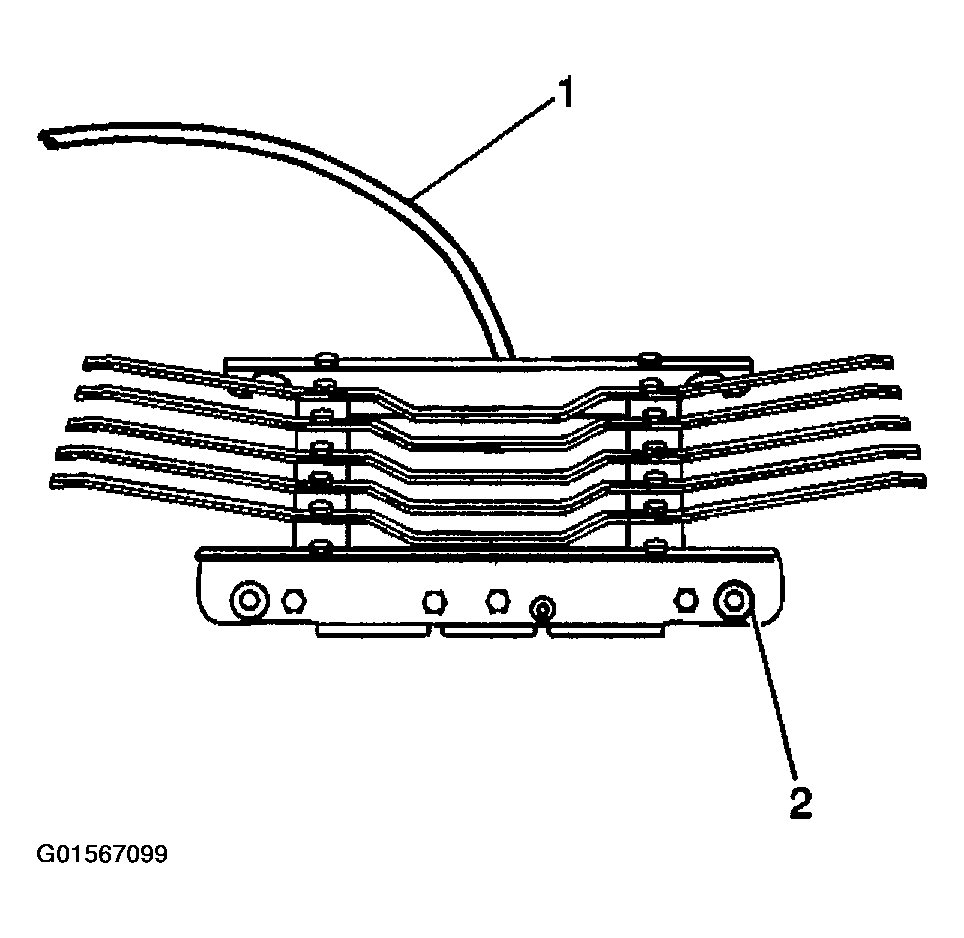

    Fig 3: Installing Lumbar Plate Cable To Lumbar Plate
    G01567099Courtesy of GENERAL MOTORS CORP.
