Installation Procedure

  1. Align the post of the headrest with the holes in the seat back.
  2. Manipulate the posts within the seat back until the posts fall into the holes in the headrest bushing.
  3. Press the headrest all the way into the seat.
  4. Raise the headrest in order to verify that the locks are engaged.

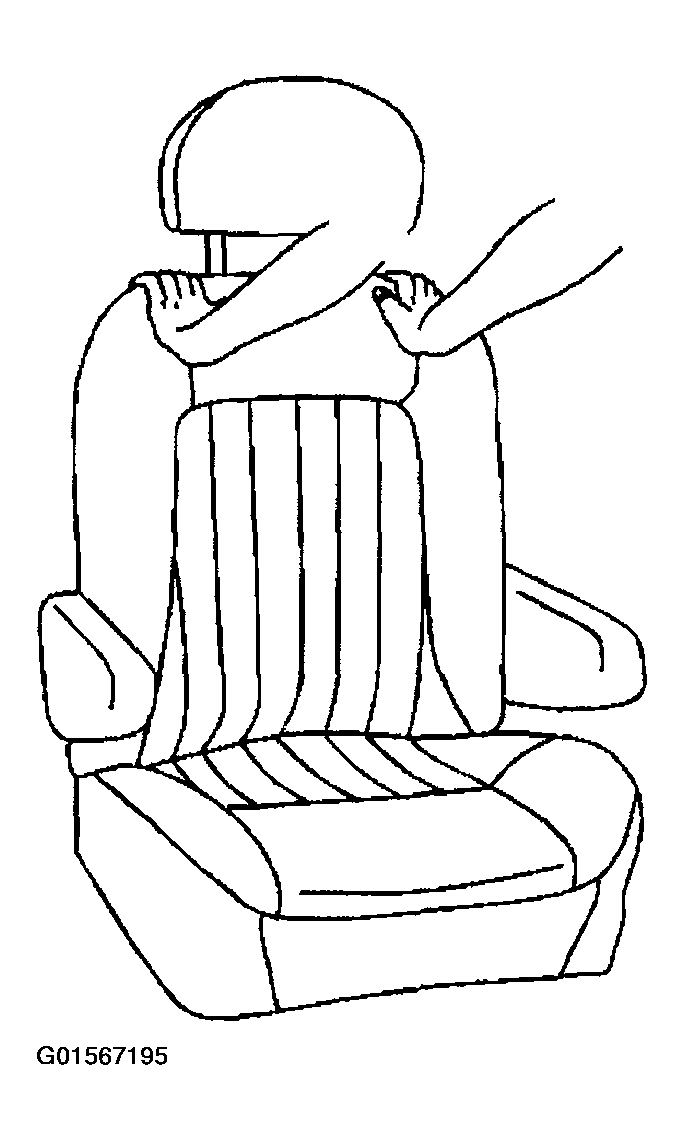

    Fig 1: Installing Headrest To Seat Back
    G01567195Courtesy of GENERAL MOTORS CORP.
