Installation Procedure

  1. Install the headrest to the seat back.
  2. Push down on the headrest.
  3. While continuing to press down on the headrest, depress the locking tab on the other side of the headrest bushing.
  4. The locking tabs should click into place.

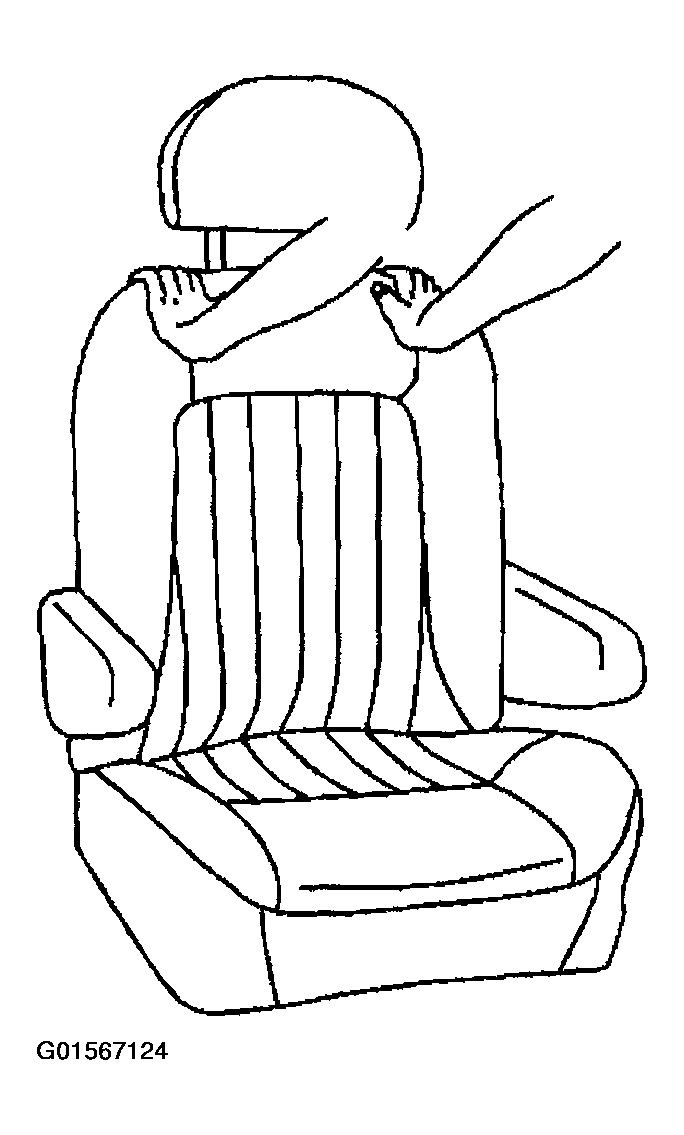

    Fig 1: Installing Headrest Into Seat Back (YC7)
    G01567124Courtesy of GENERAL MOTORS CORP.
