Removal Procedure

  1. Raise the headrest.

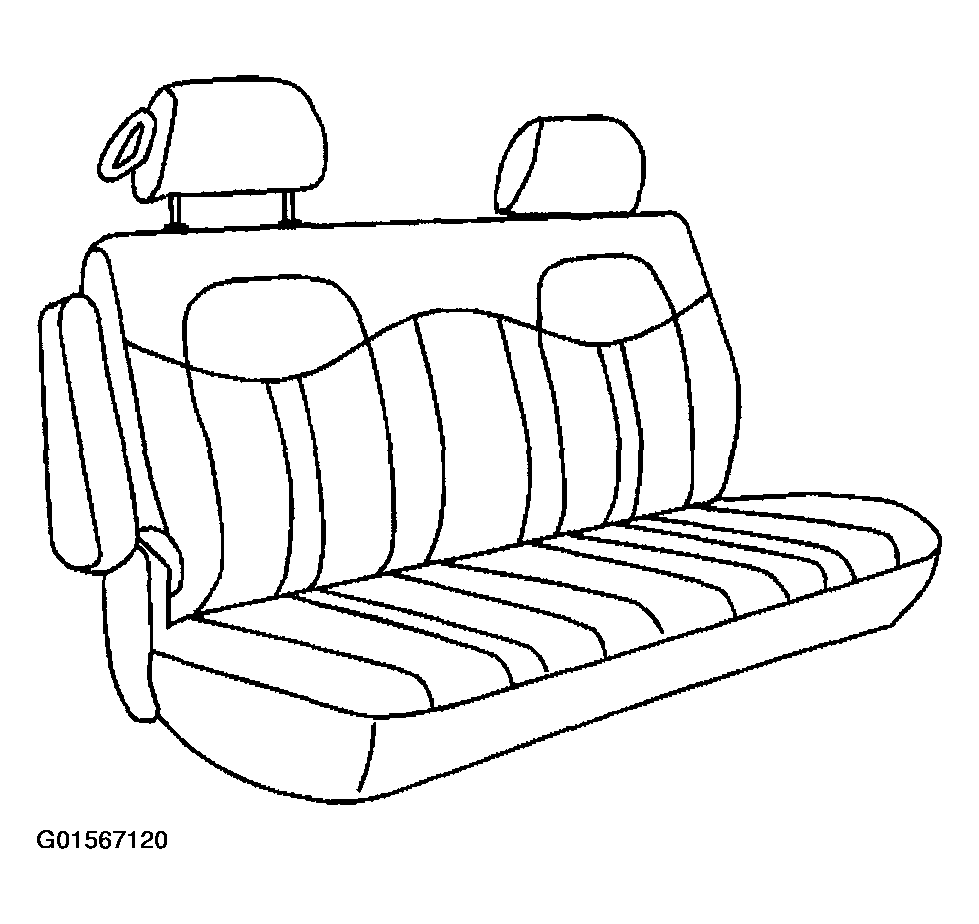

    Fig 1: Raising Headrest (YC6)
    G01567120Courtesy of GENERAL MOTORS CORP.
  2. Using a pointed tool, release the retainer on either side of the headrest while pulling up on the headrest.
  3. Remove the headrest from the seat.

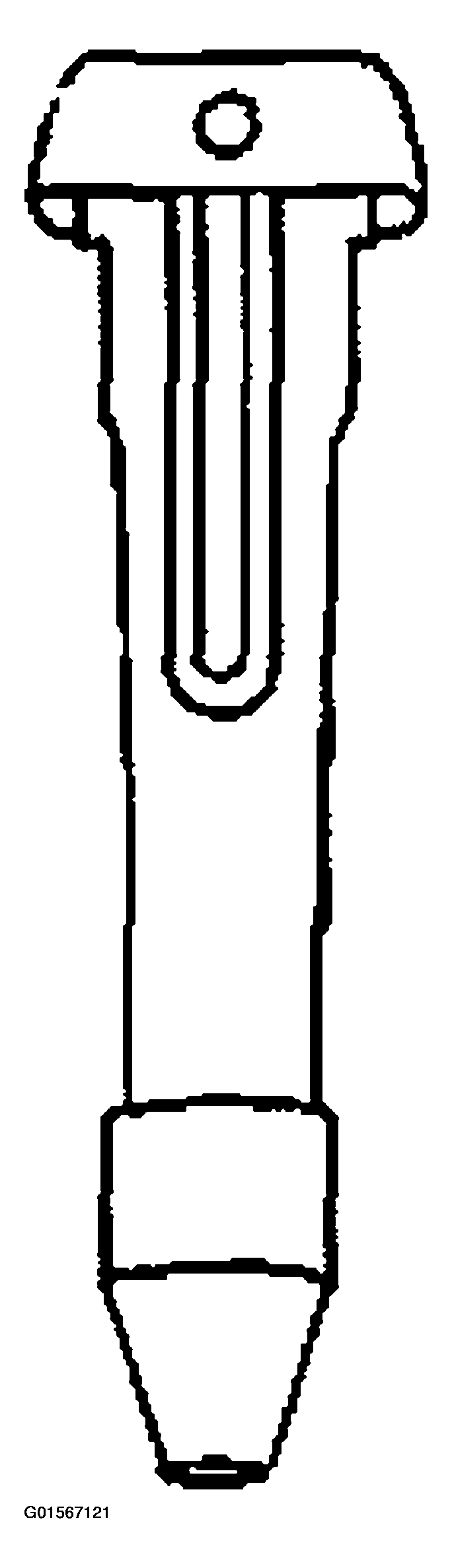

    Fig 2: Identifying Pointed Tool To Release Retainer On Either Side Of Headrest
    G01567121Courtesy of GENERAL MOTORS CORP.
