Installation Procedure

  1. Align the headrest posts with the openings in the seat back.
  2. Press the headrest down into the seat to the fully lowered position.
  3. Pull the headrest back up in order to assure the retainers are functioning properly.

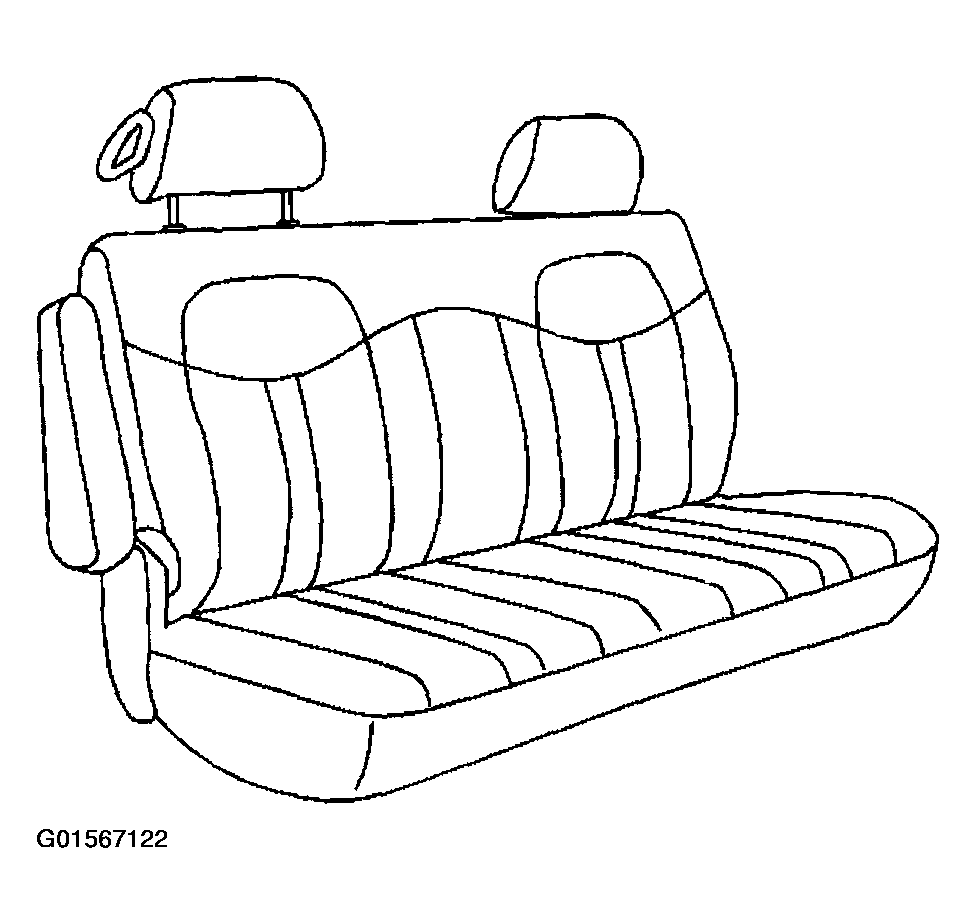

    Fig 1: Pressing Headrest Down Into Seat To Fully Lowered Position
    G01567122Courtesy of GENERAL MOTORS CORP.
