Removal Procedure

  1. Remove the hog rings retaining the carpet to the seat cushion frame.
  2. Remove the carpet covering the center of the seat cushion frame along the rear edge of the seat, under the console.
  3. Remove the bolts retaining the console to the seat cushion frame.
    Fig 1: Removing Bolts Retaining Console To Seat Cushion Frame
    G01567196Courtesy of GENERAL MOTORS CORP.
  4. Remove the console and drink tray from the seat cushion frame.

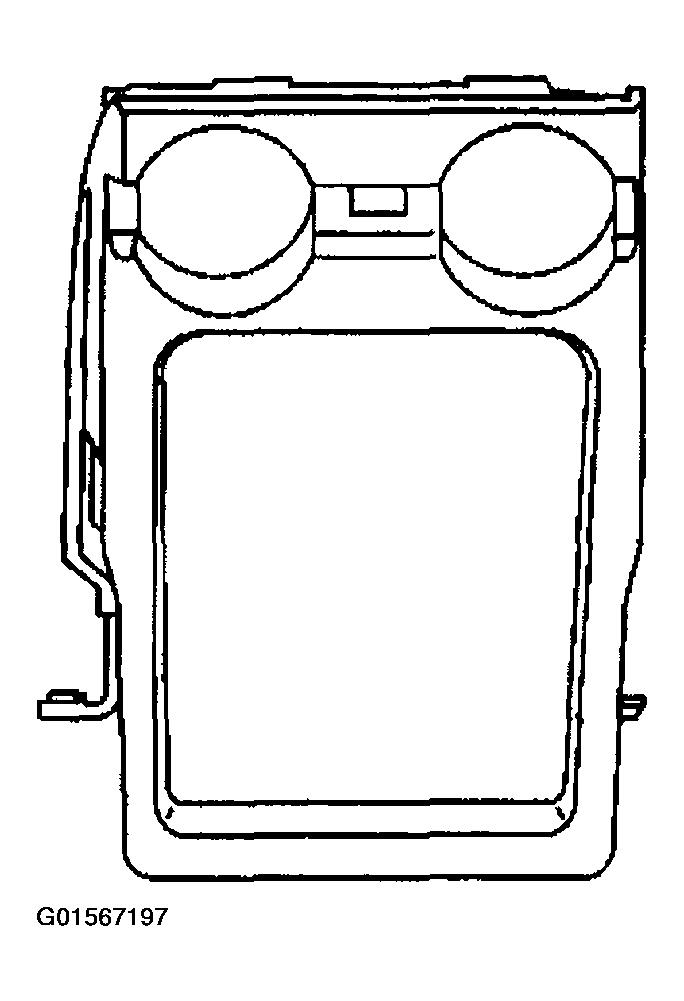

    Fig 2: Removing Console And Drink Tray From Seat Cushion Frame
    G01567197Courtesy of GENERAL MOTORS CORP.
