Installation Procedure

  1. Install the console and drink tray to the seat cushion frame.

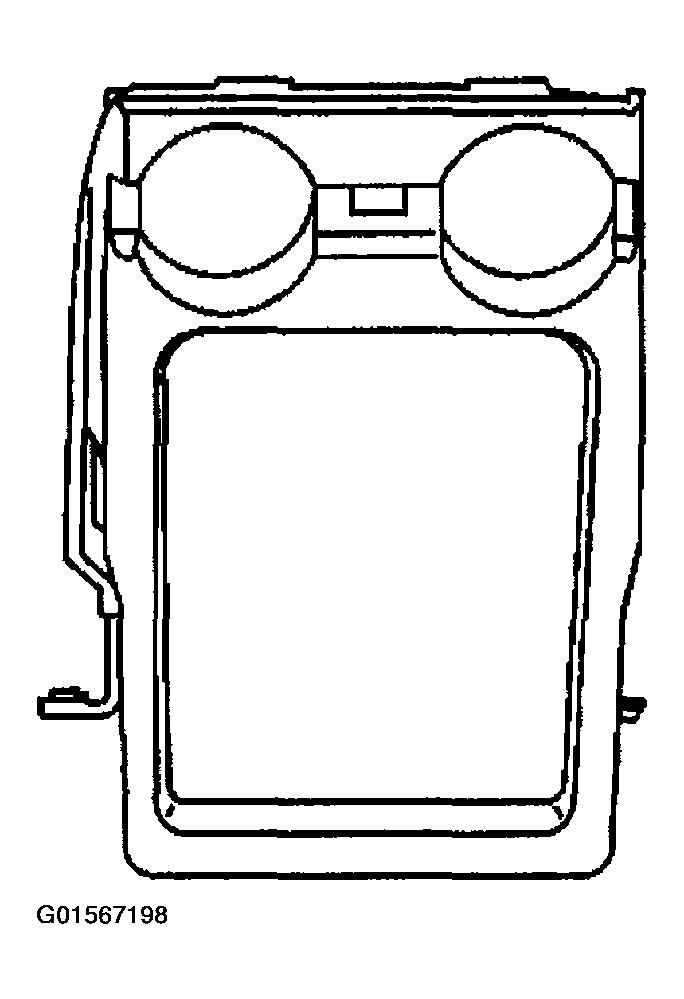

    Fig 1: Installing Console And Drink Tray To Seat Cushion Frame
    G01567198Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts retaining the console and drink tray the seat cushion frame.

    Tighten

    Tighten the bolts retaining the console and drink tray to the seat cushion frame to 4 N.m (35 lb in).

  3. Install the carpet covering the center of the seat cushion frame along the rear edge of the seat, under the console.
  4. Install the hog rings in order to retain the carpet to the frame.
    Fig 2: Installing Bolts Retaining Console To Seat Cushion Frame
    G01567199Courtesy of GENERAL MOTORS CORP.
