Removal Procedure

  1. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT (YC7)  .
  2. Remove the headrest bushings from the seat back frame as follows:
    1. 2.1. Squeeze together the retaining tabs at the base of the bushing.
    2. 2.2. Remove the bushing by lifting the bushing up.

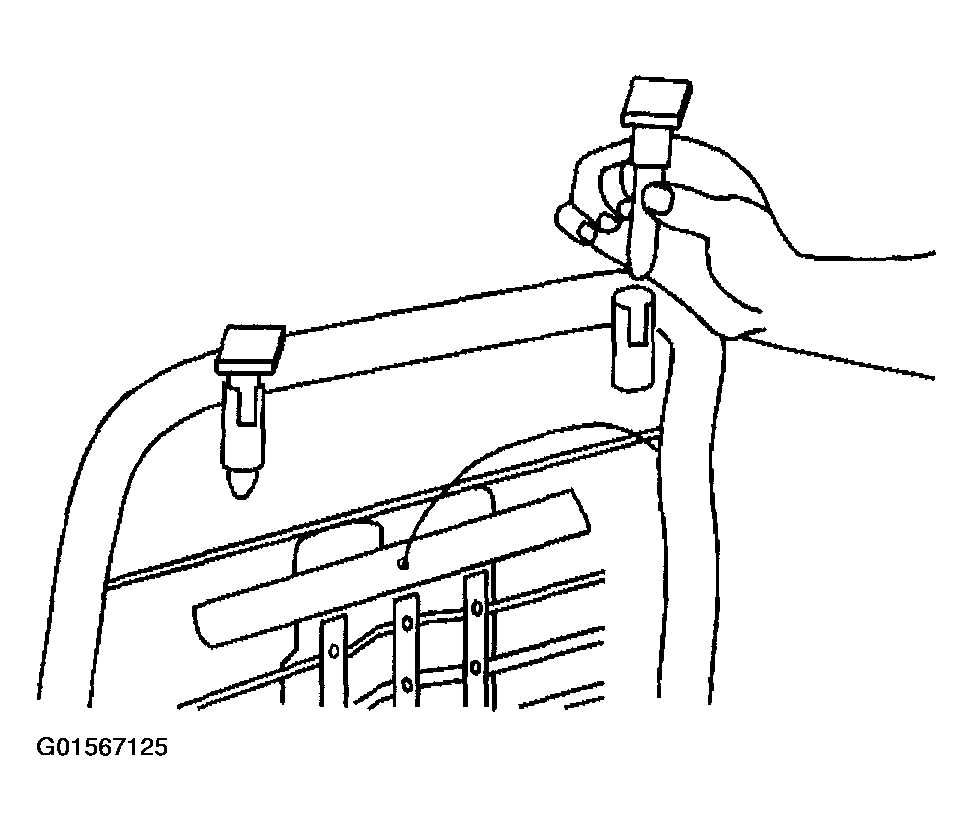

      Fig 1: Removing Headrest Bushings From Seat Back Frame
      G01567125Courtesy of GENERAL MOTORS CORP.
