Installation Procedure

  1. Install the headrest bushings by pressing the bushings into the seat back frame until the retaining tabs snap into place.
  2. Install the seat back trim cover and pad assembly. Refer to SEAT BACK COVER AND PAD REPLACEMENT (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT (YC7)  .

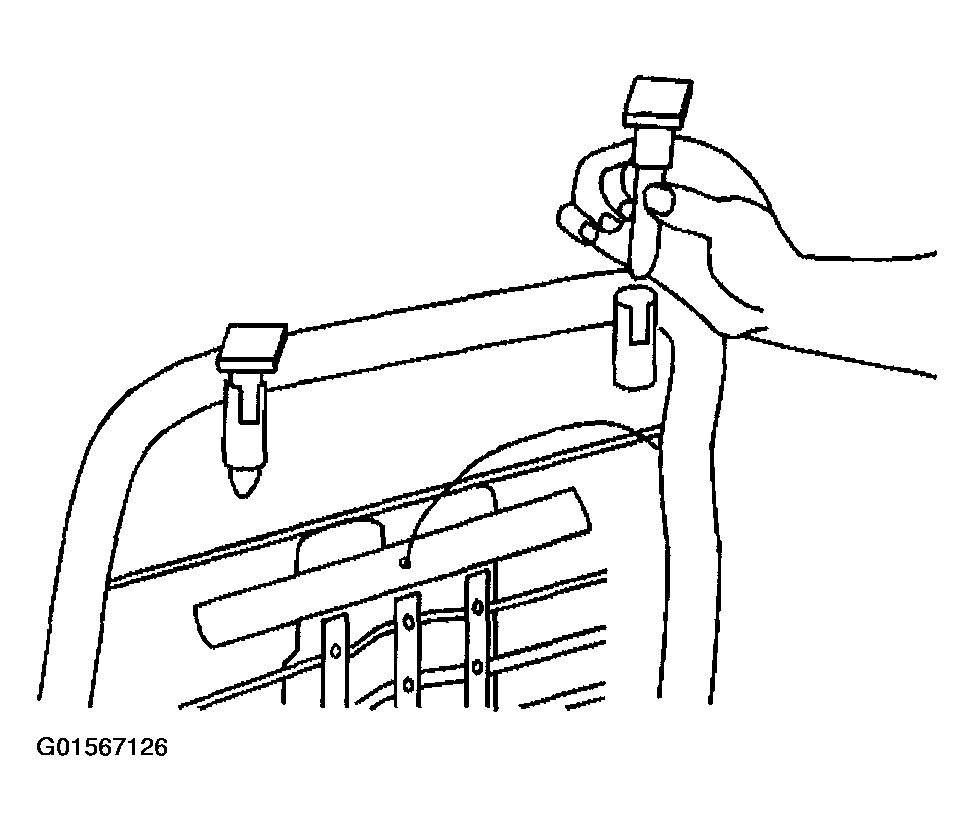

    Fig 1: Installing Headrest Bushings
    G01567126Courtesy of GENERAL MOTORS CORP.
