Installation Procedure

  1. Install the armrest cover to the armrest, if you removed the cover.
  2. Install the armrest from the seat back.
  3. Reach inside the seat back and install the armrest retaining clip.
    • Install the clip with the opening facing down.
    • Observe the fit of the clip once installed. If the clip is loose when fitted in the groove in the seat back frame, remove the clip and crimp the clip closed slightly.

      Repeat this procedure until the clip fits snugly in the groove, or install a new clip.

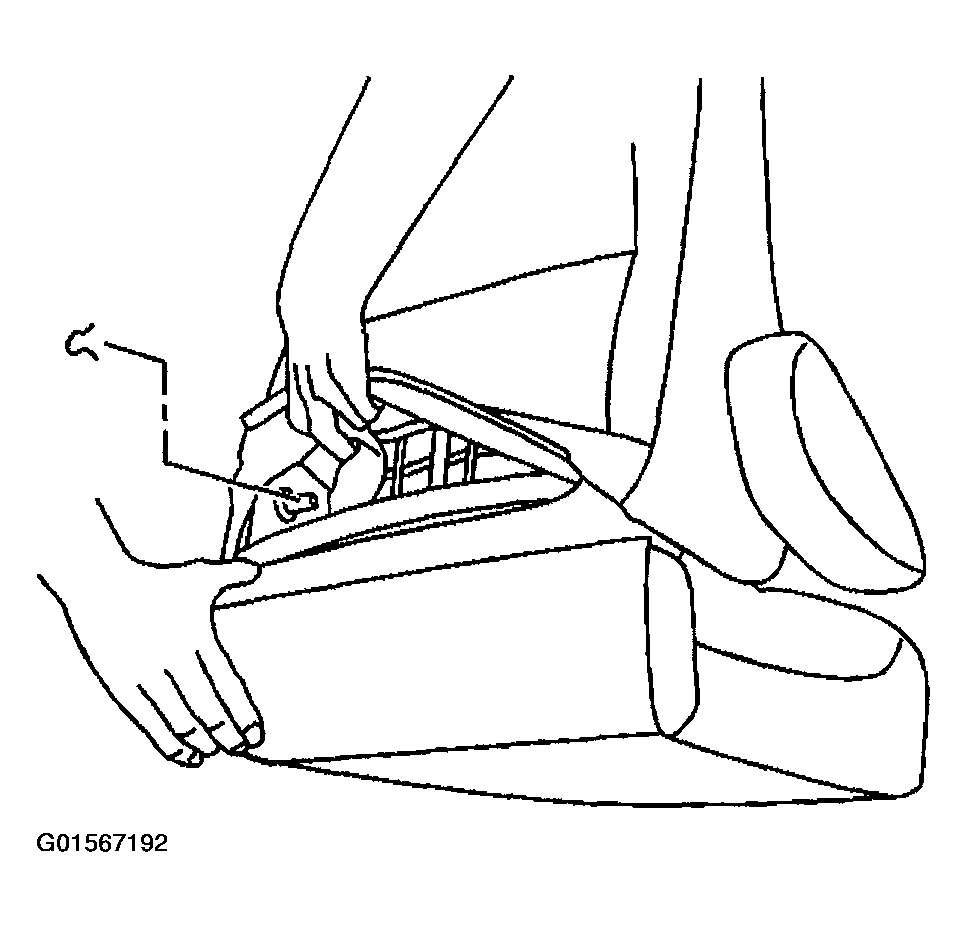

      Fig 1: Accessing Armrest Retaining Clip
      G01567192Courtesy of GENERAL MOTORS CORP.
  4. Zip the seat back cover.
  5. Install the upper and lower seat back latch and seat back hinge trim. Refer to SEAT BACK HINGE TRIM REPLACEMENT - REAR LEFT  , or SEAT BACK HINGE TRIM REPLACEMENT - REAR RIGHT (YC6)  .
  6. Fold up the seat back.
  7. Install the rear bench seat to the Vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
    Fig 2: Zipping Seat Back Cover
    G01567193Courtesy of GENERAL MOTORS CORP.
