Removal Procedure

  1. Remove the armrest by rotating it to the down position.

    Slip a pair of snap-ring pliers between the seat and the armrest.

    Fig 1: Removing Armrest (YC6)
    G01567127Courtesy of GENERAL MOTORS CORP.
  2. Ensure that the snap-ring pliers go between the arms of the snap plate.

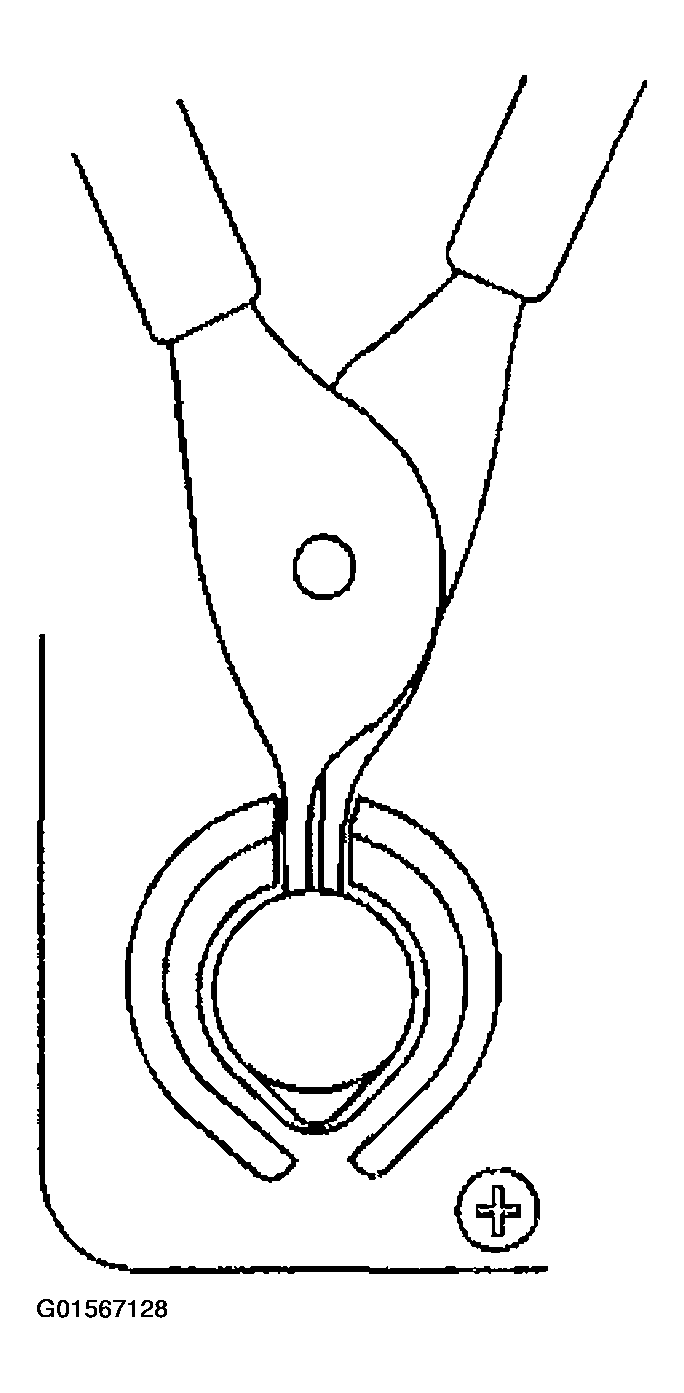

    Fig 2: Correct Snap-Ring Plier Placement (YC6)
    G01567128Courtesy of GENERAL MOTORS CORP.
  3. Keeping the armrest plate arms open, pull the armrest straight back off the seat post.
