Power Seat Does Not Tilt Forward

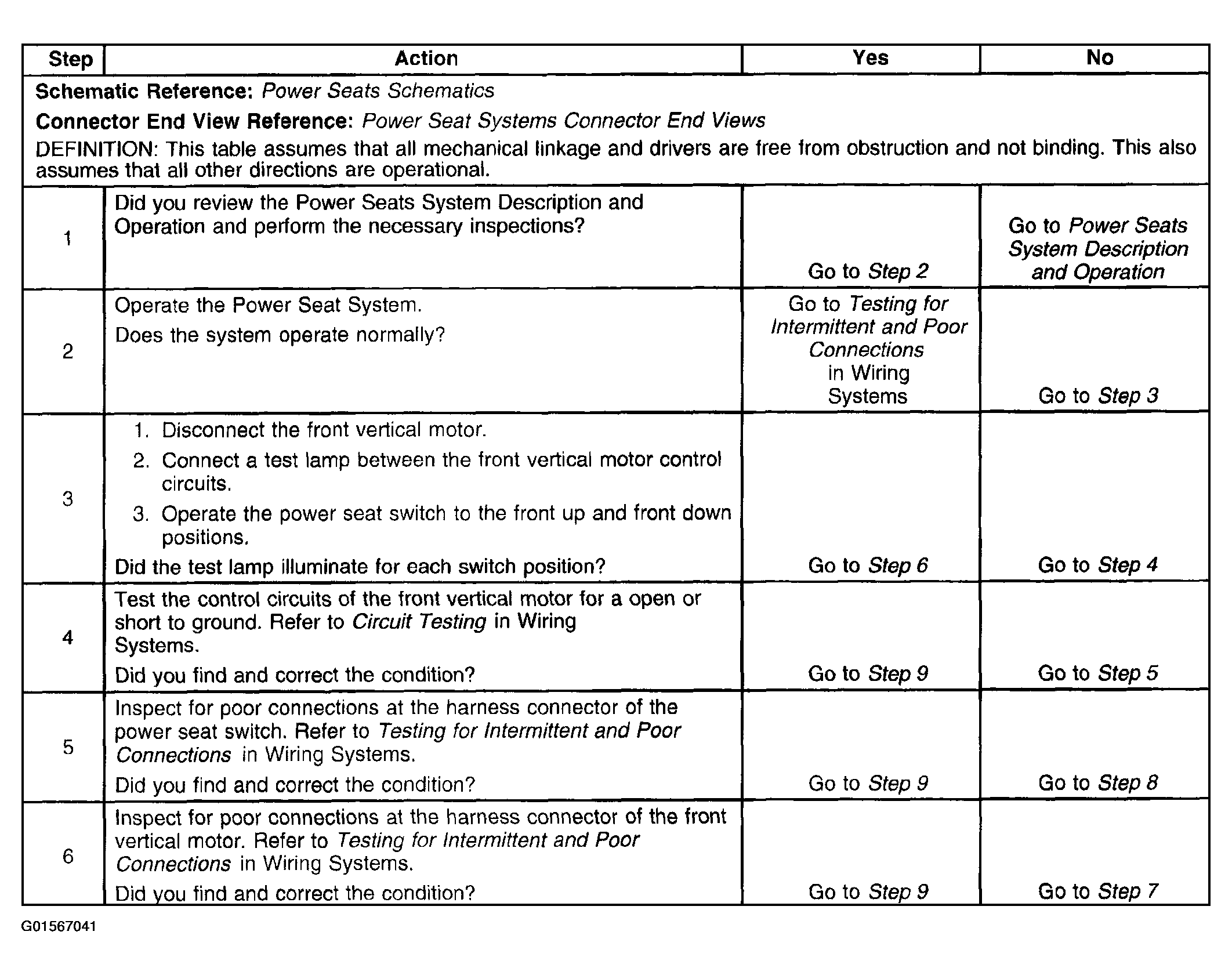

Fig 1: Power Seat Does Not Tilt Forward Diagnostic Test (1 Of 2)
G01567041Courtesy of GENERAL MOTORS CORP.

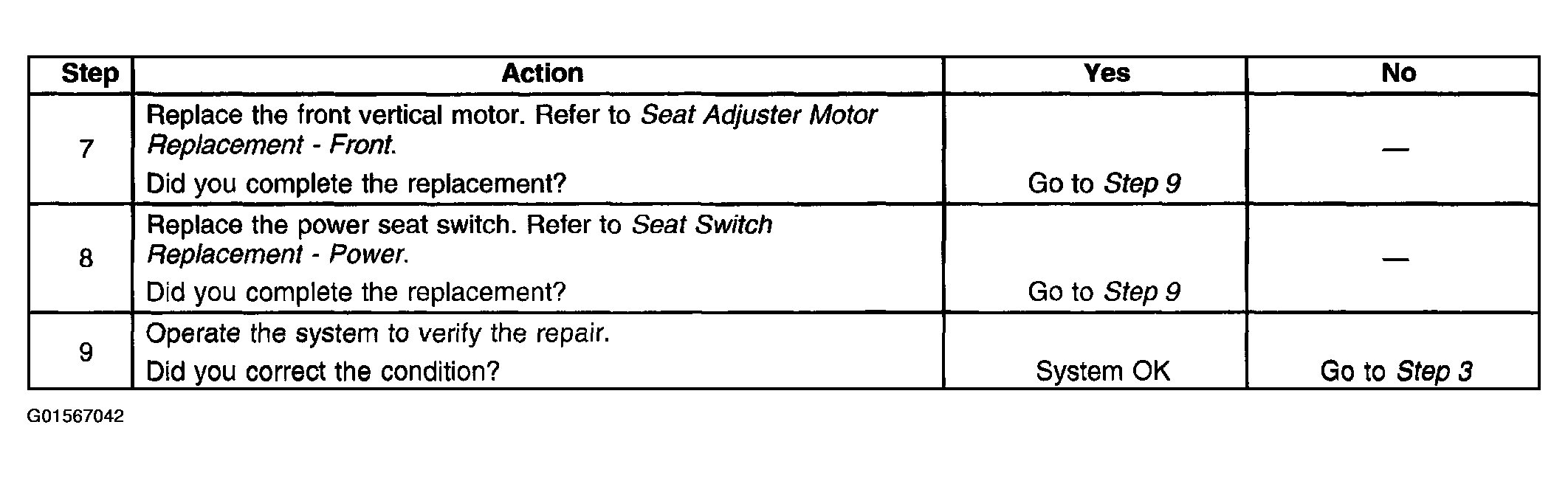

Fig 2: Power Seat Does Not Tilt Forward Diagnostic Test (2 Of 2)
G01567042Courtesy of GENERAL MOTORS CORP.
