Power Seat Does Not Move Forward/Rearward

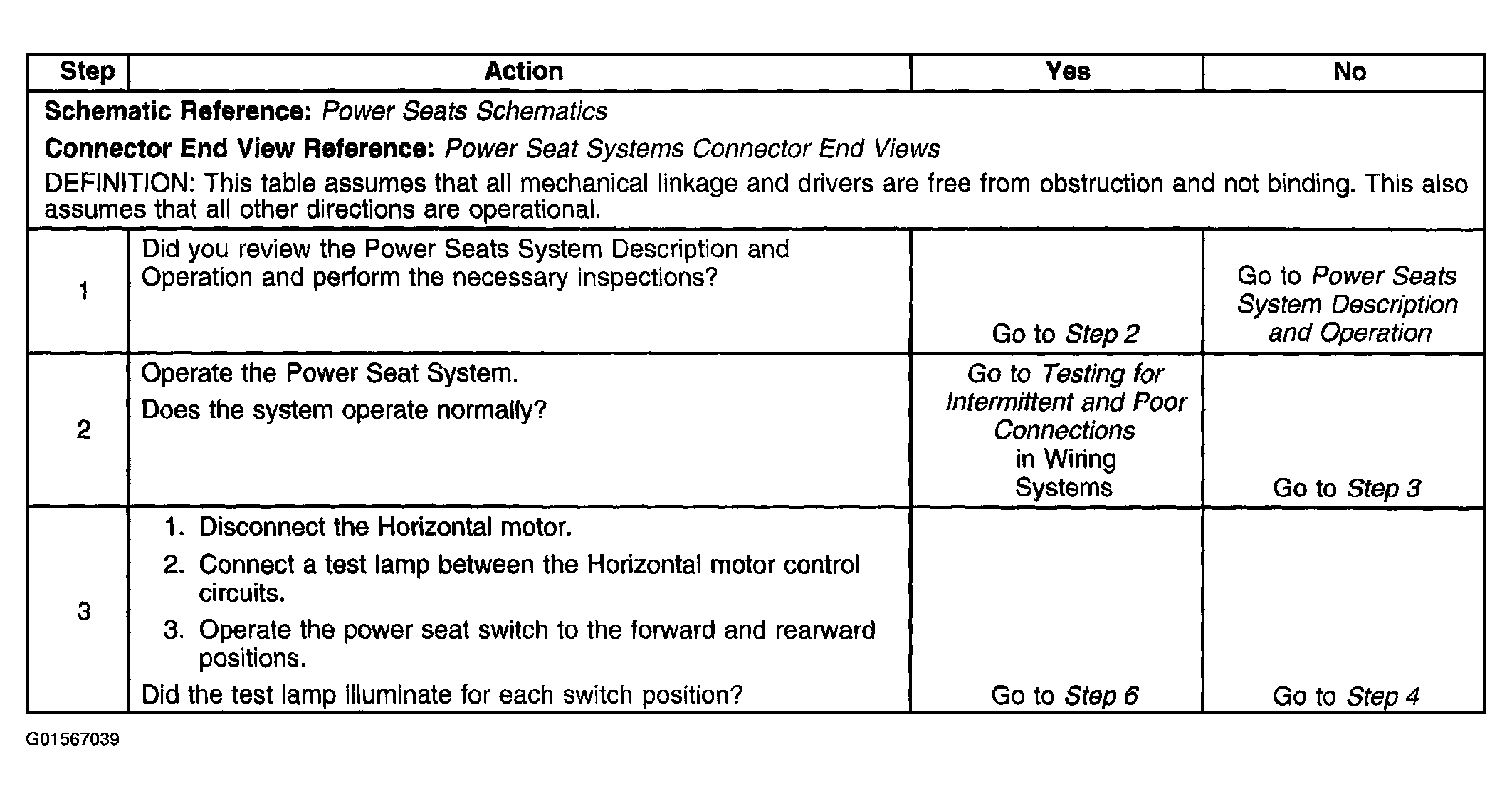

Fig 1: Power Seat Does Not Move Forward/Rearward Diagnostic Test (1 Of 2)
G01567039Courtesy of GENERAL MOTORS CORP.

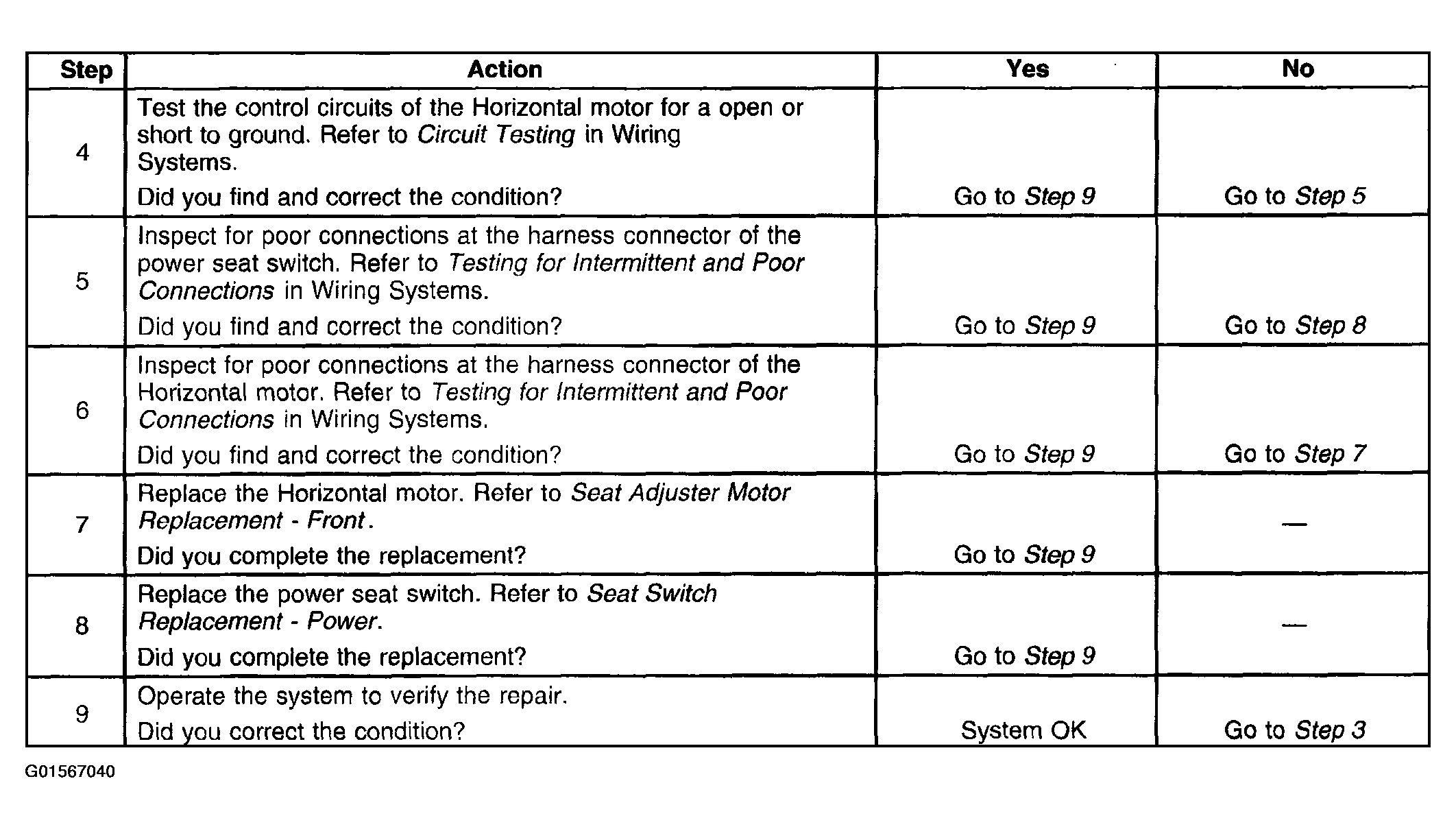

Fig 2: Power Seat Does Not Move Forward/Rearward Diagnostic Test (2 Of 2)
G01567040Courtesy of GENERAL MOTORS CORP.
