Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Support the transmission with a transmission jack.
  3. Remove the two nuts securing the transmission mount to the transmission support.

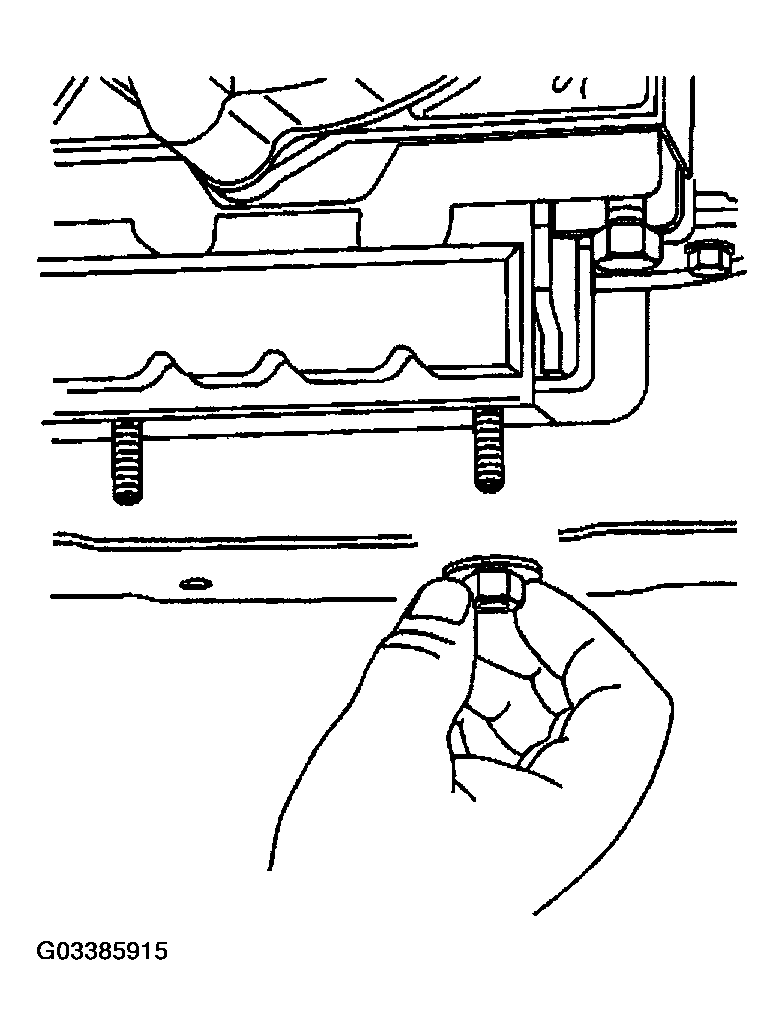

    Fig 1: Removing Transmission Mount To Transmission Support Securing Nut
    G03385915Courtesy of GENERAL MOTORS CORP.
  4. Remove the transmission support nuts and bolts.
  5. Remove the transmission support from the vehicle.

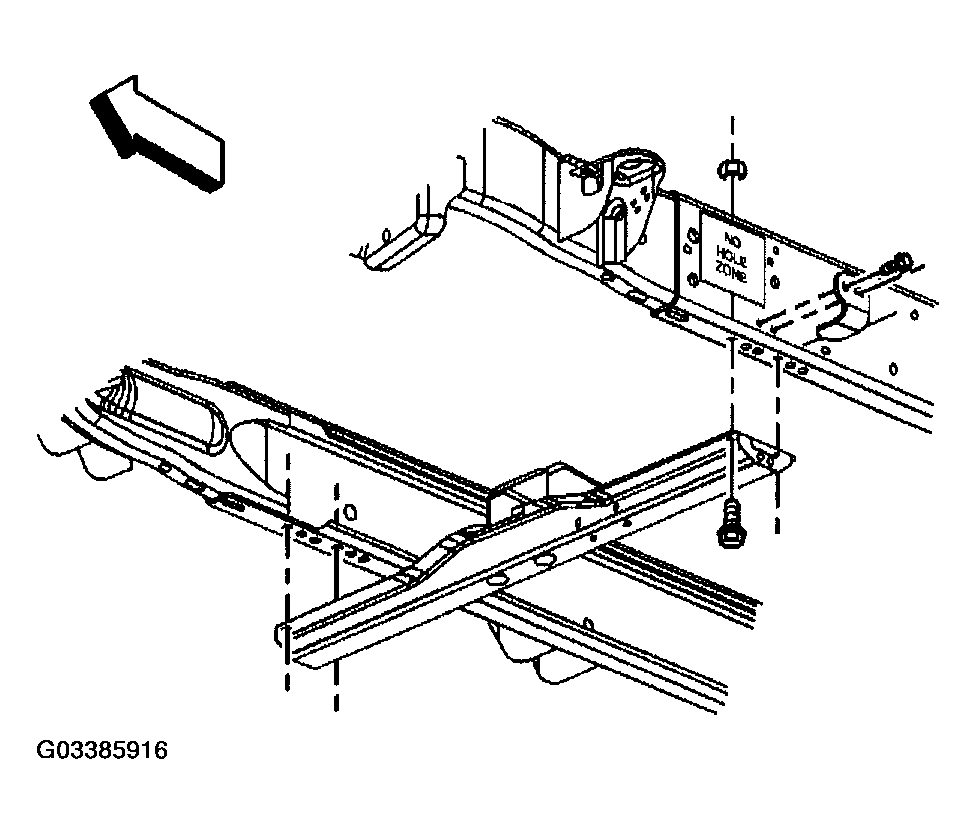

    Fig 2: Removing Transmission Support From Vehicle
    G03385916Courtesy of GENERAL MOTORS CORP.
