Installation Procedure

  1. Install the transmission support to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the transmission support nuts and bolts.

    Tighten

    Tighten the nuts and bolts to 70 N.m (52 lb ft).

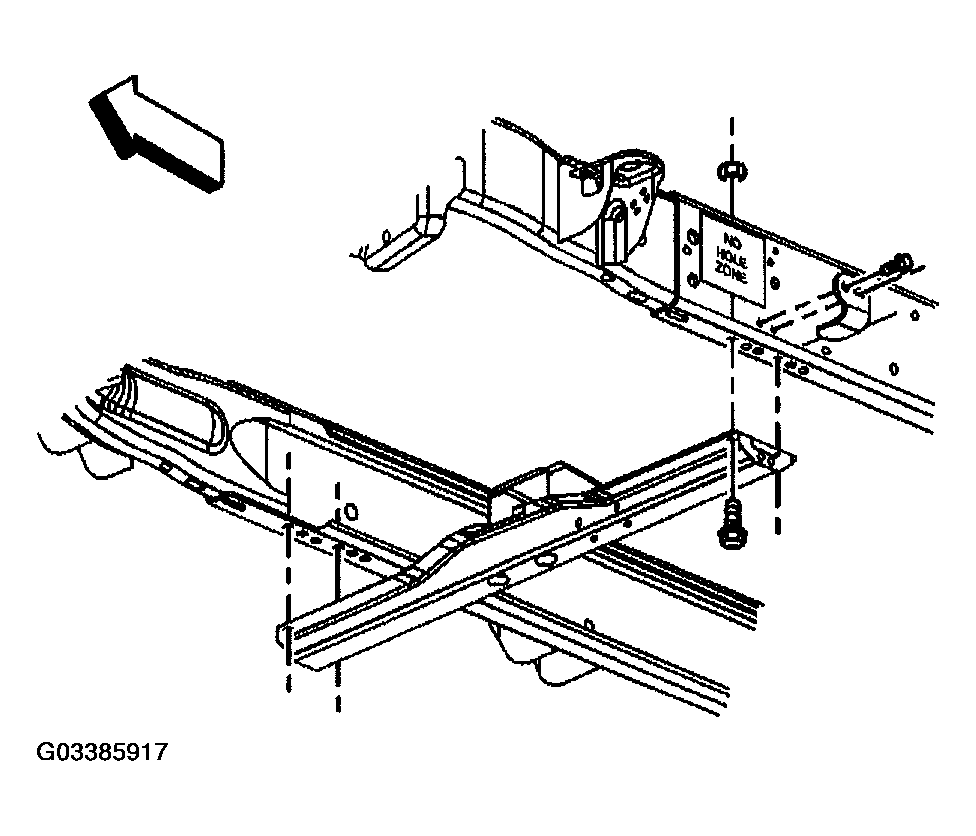

    Fig 1: Installing Transmission Support To Vehicle
    G03385917Courtesy of GENERAL MOTORS CORP.
  3. Install the two nuts securing the transmission mount to the transmission support.

    Tighten

    Tighten the nuts to 45 N.m (33 lb ft).

  4. Remove the transmission jack.
  5. Lower the vehicle.
    Fig 2: Installing Transmission Mount To Transmission Support Securing Nut
    G03385918Courtesy of GENERAL MOTORS CORP.
