Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the bolts that retain the frame stop to the frame.
  3. Remove the frame stop.

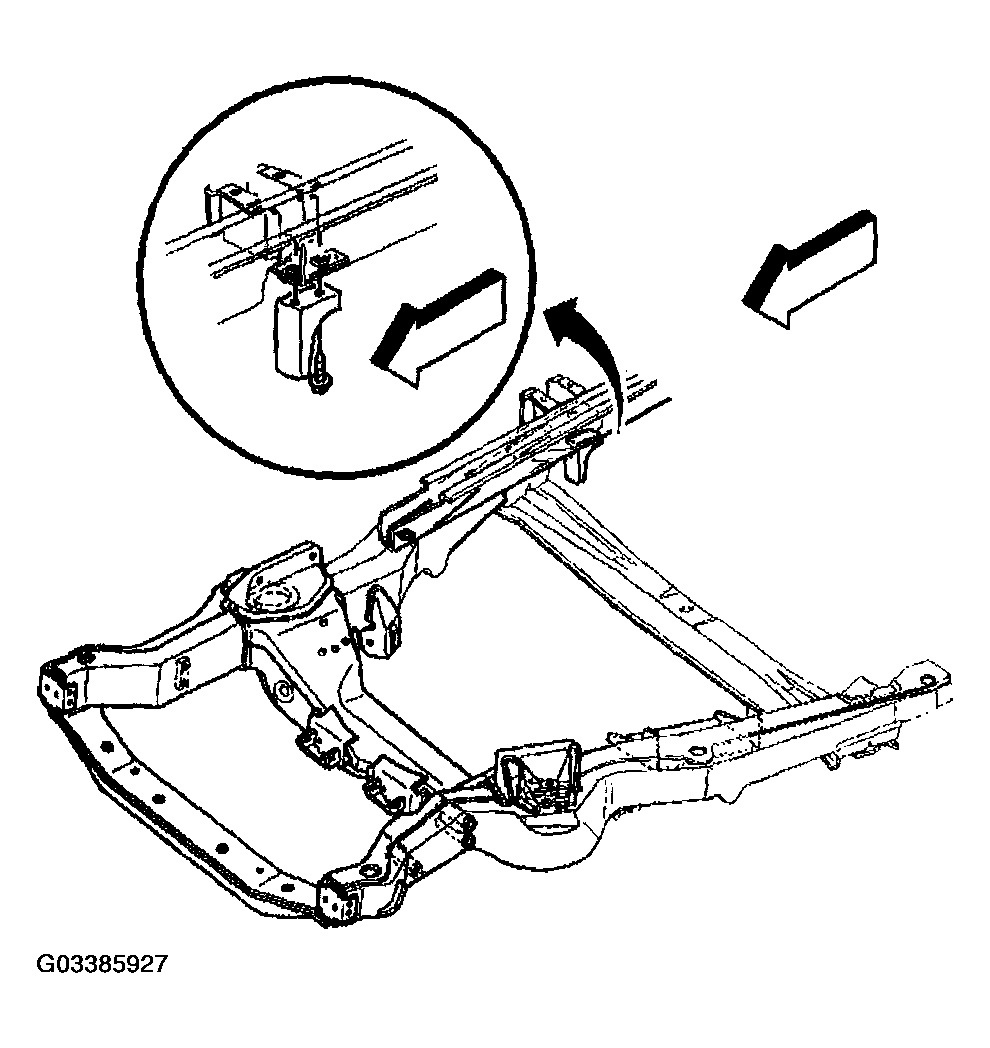

    Fig 1: Removing Frame Stop
    G03385927Courtesy of GENERAL MOTORS CORP.
