Installation Procedure

  1. Install the frame stop.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the frame stop to the frame.

    Tighten

    Tighten the bolts that retain the frame stop to 35 N.m (26 lb ft).

  3. Lower the vehicle.

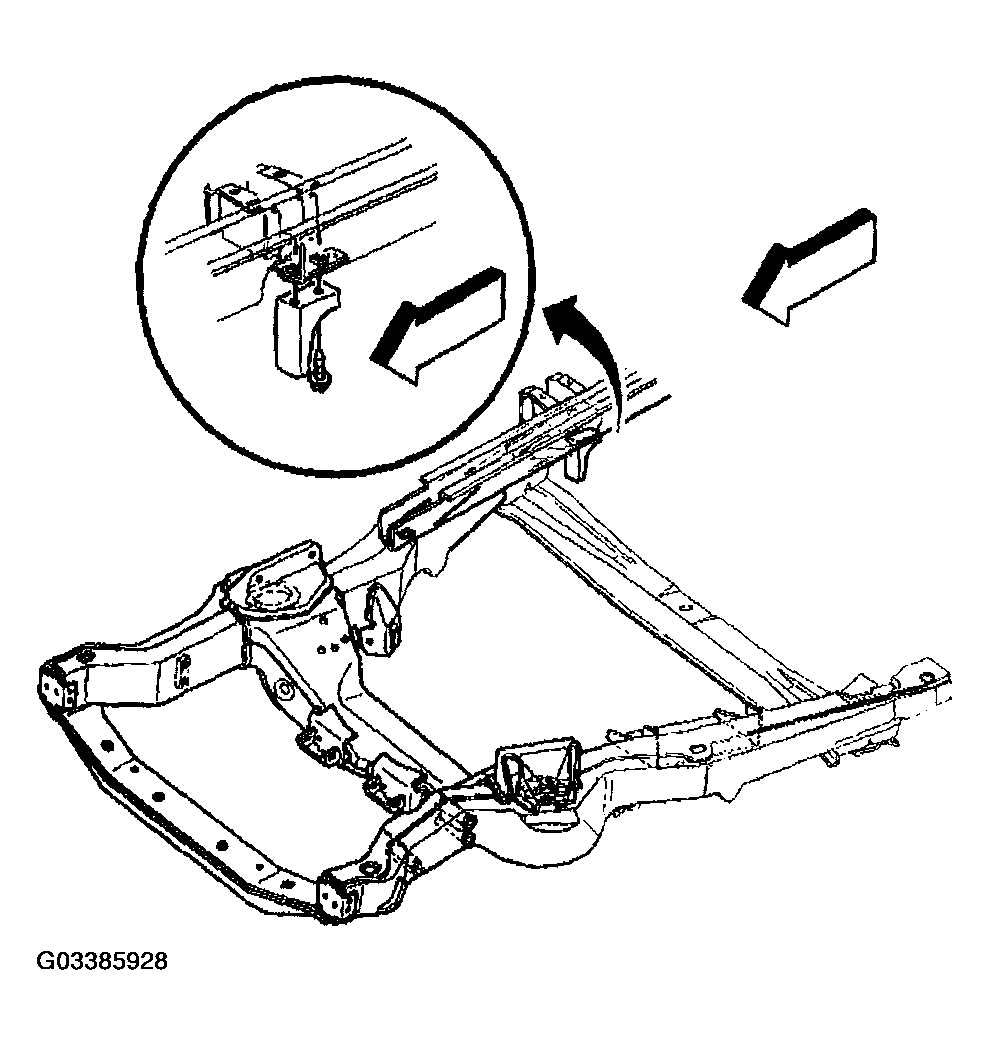

    Fig 1: Installing Frame Stop
    G03385928Courtesy of GENERAL MOTORS CORP.
