Removal Procedure

  1. Raise the vehicle at the frame. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
    IMPORTANT: Properly support the frame and the body while changing the mount. If you are changing only one mount, the entire side on which the mount is placed must be lowered enough to provide clearance for the mount.
  2. Use the J 41602 in order to support the body at the pinchweld flange.

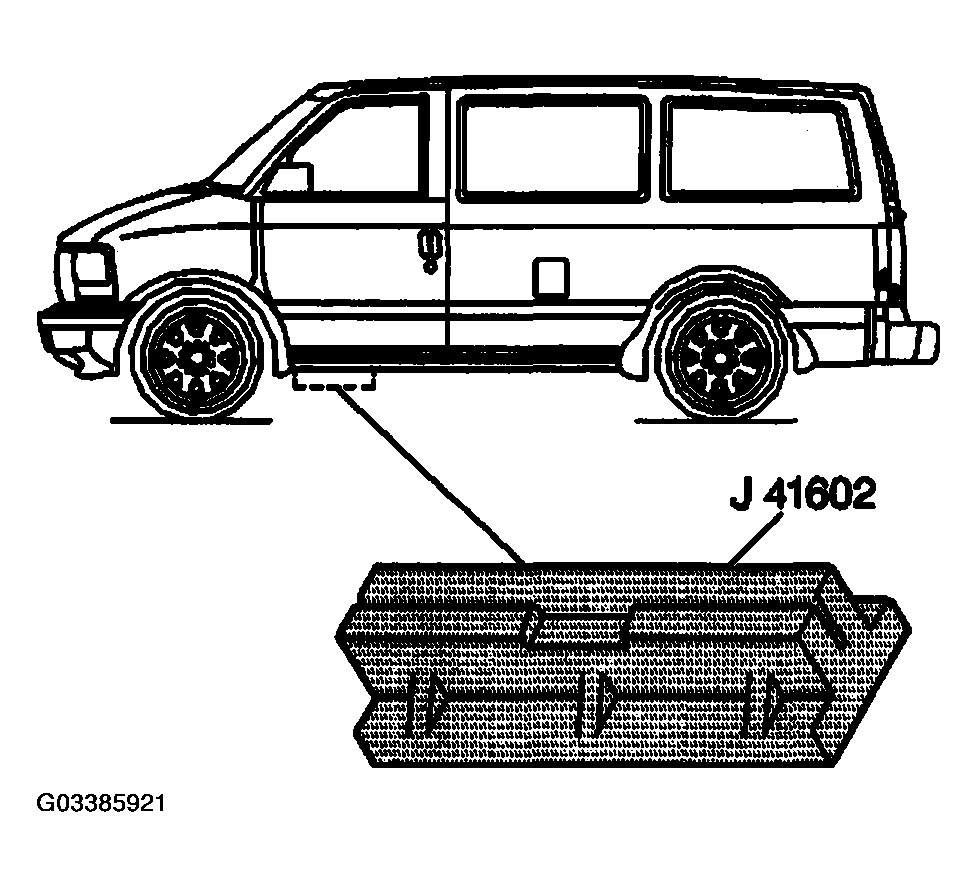

    Fig 1: Identifying Body Protection Hoist Adapter Set J 41602
    G03385921Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts that retain the front bumper fascia at the brace.

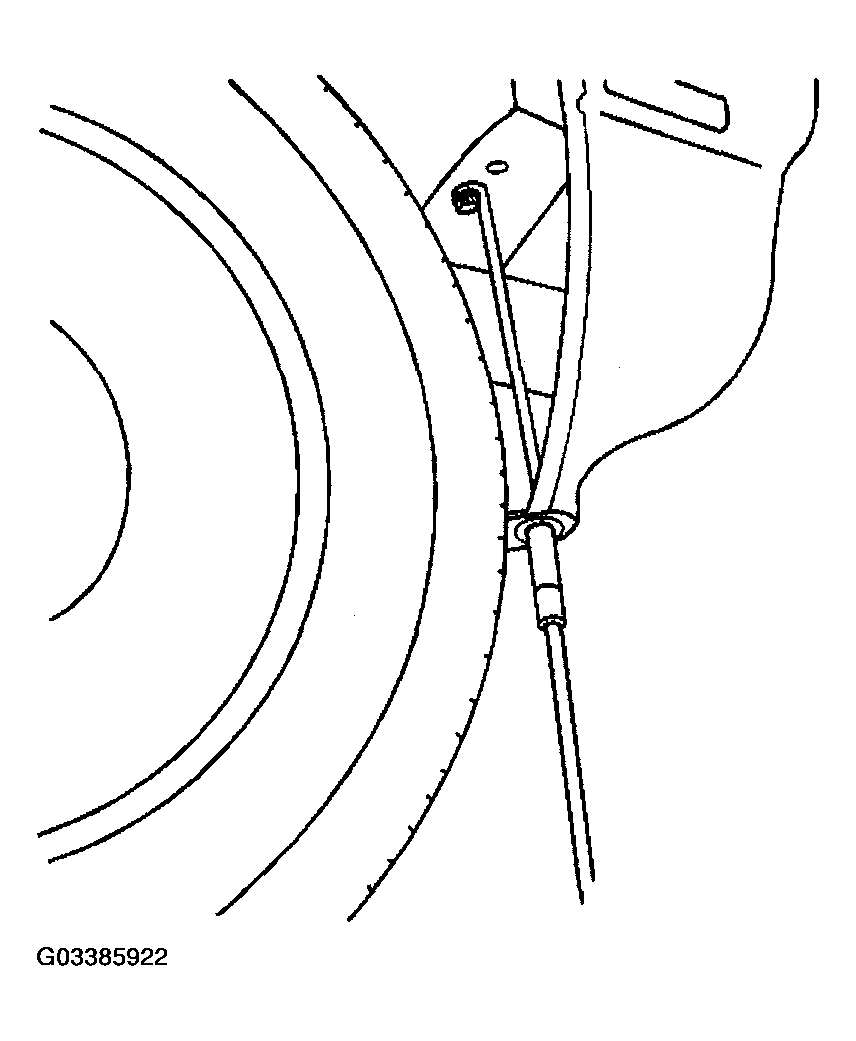

    Fig 2: Removing Bolts That Retain Front Bumper Fascia At Brace
    G03385922Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts that retain the front bumper fascia at the fender.

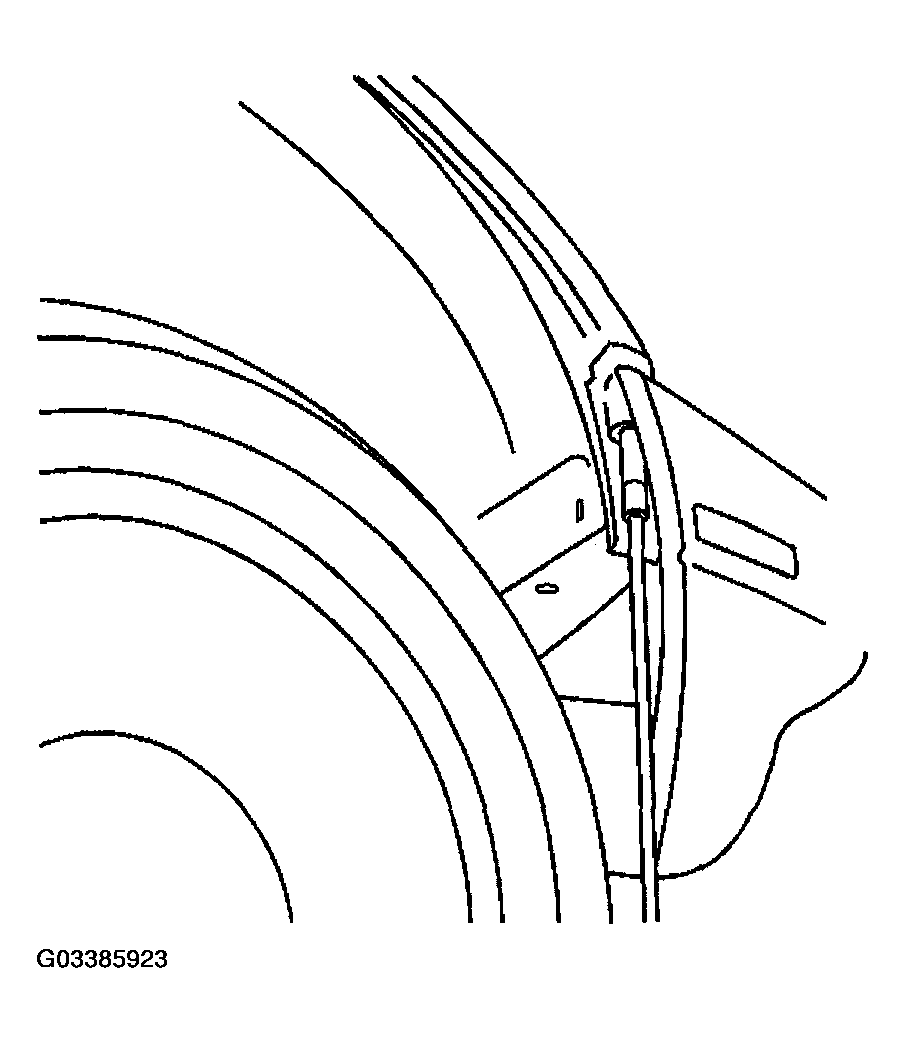

    Fig 3: Removing Bolts That Retain Front Bumper Fascia At Fender
    G03385923Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolt, the retainer, and the lower insulator of the mount:
    1. 5.1. Loosen the remaining bolts on that side far enough for the upper insulator to be removed.
    2. 5.2. Gradually lower the screw jack in order to allow the frame to come away from the body.
  6. Remove the upper body insulator.

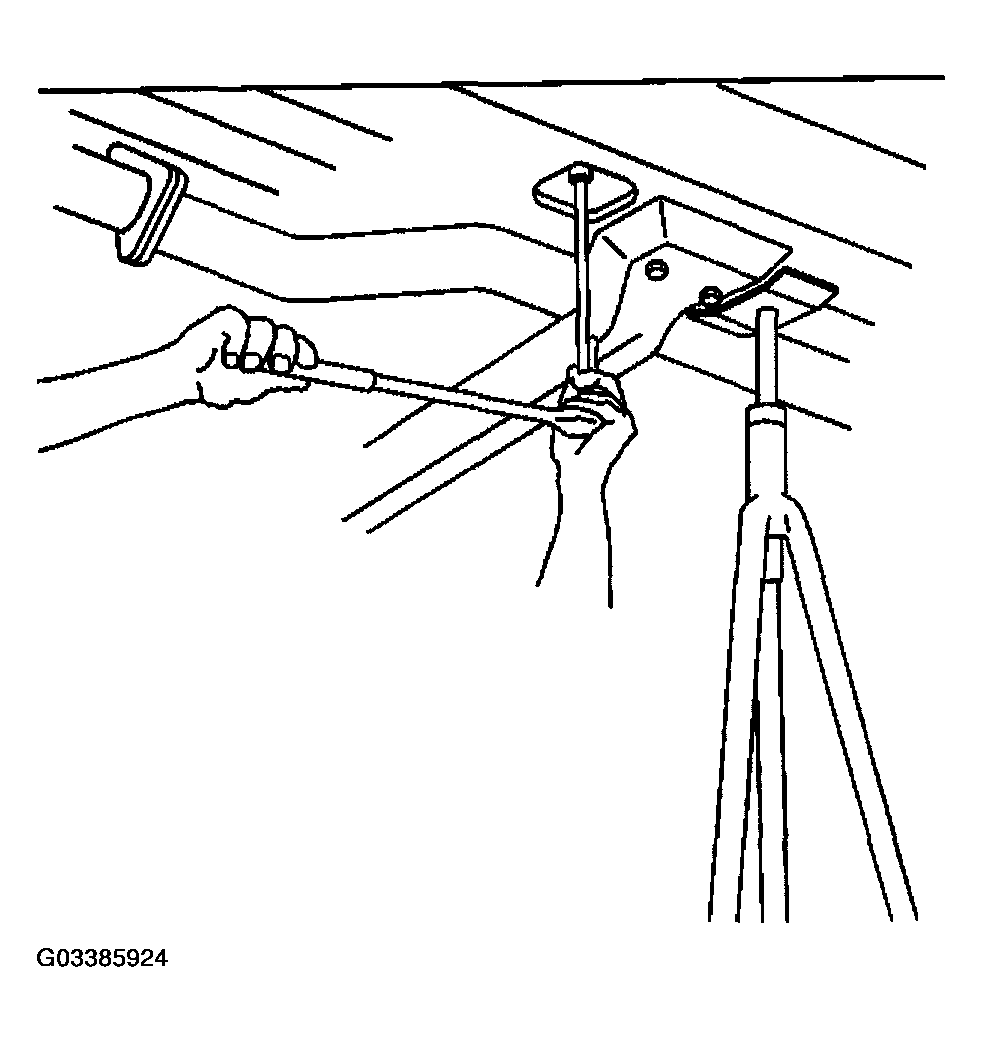

    Fig 4: Removing Lower Insulator Mount Bolt
    G03385924Courtesy of GENERAL MOTORS CORP.
