Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the bolts that retain the forward edge of the crossmember brace to the frame.
  3. Remove the bolts and the nuts that retain the rear edge of the crossmember brace to the frame.
  4. Remove the crossmember brace from the frame.

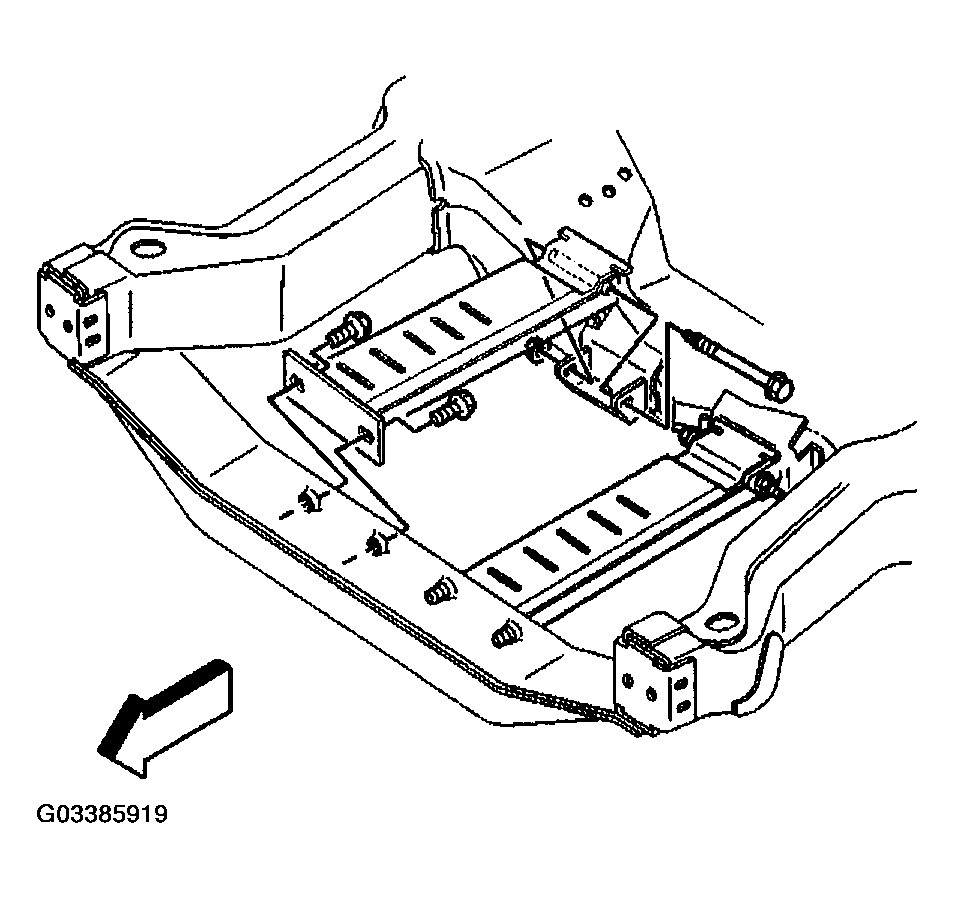

    Fig 1: Removing Crossmember Brace From Frame
    G03385919Courtesy of GENERAL MOTORS CORP.
