Removal Procedure

  1. Raise the vehicle to a suitable height.
    IMPORTANT: The assist step assembly does not have to be removed to replace the assist step brace.
  2. Remove the nuts and bolts (1) that attach the assist step brace to the assist step support bracket.
  3. Remove the assist step brace.

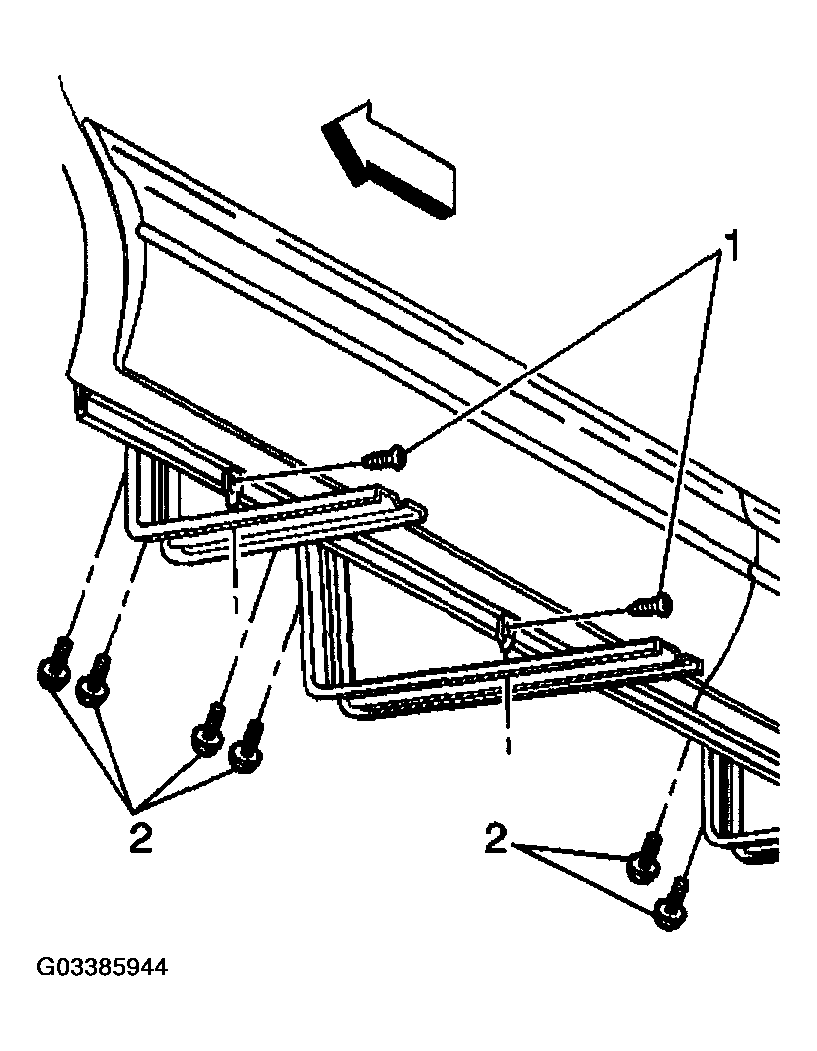

    Fig 1: Removing Assist Step Support Brace
    G03385944Courtesy of GENERAL MOTORS CORP.
