Installation Procedure

  1. Install the assist step brace.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts and bolts (1) that attach the assist step brace to the assist step support bracket

    Tighten

    Tighten the nuts and bolts (1) that attach the assist step brace to the assist step support bracket to 10 N.m (89 lb in).

  3. Lower the vehicle.

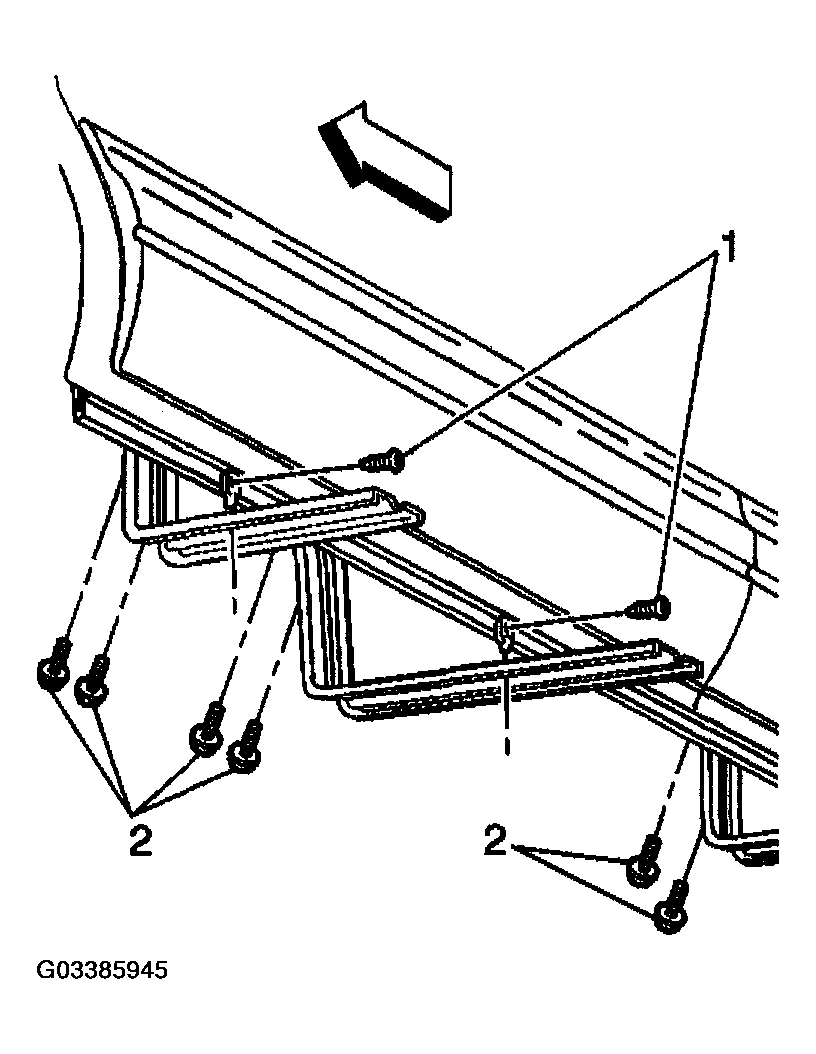

    Fig 1: Installing Assist Step Support Brace
    G03385945Courtesy of GENERAL MOTORS CORP.
