Removal Procedure

  1. Raise the vehicle to a suitable height.
  2. Remove the front and rear assist step extensions. Refer to ASSIST STEP REPLACEMENT  .
  3. Remove the nuts that attach the assist step plate to the assist step support bracket.
  4. Remove the assist step plate.

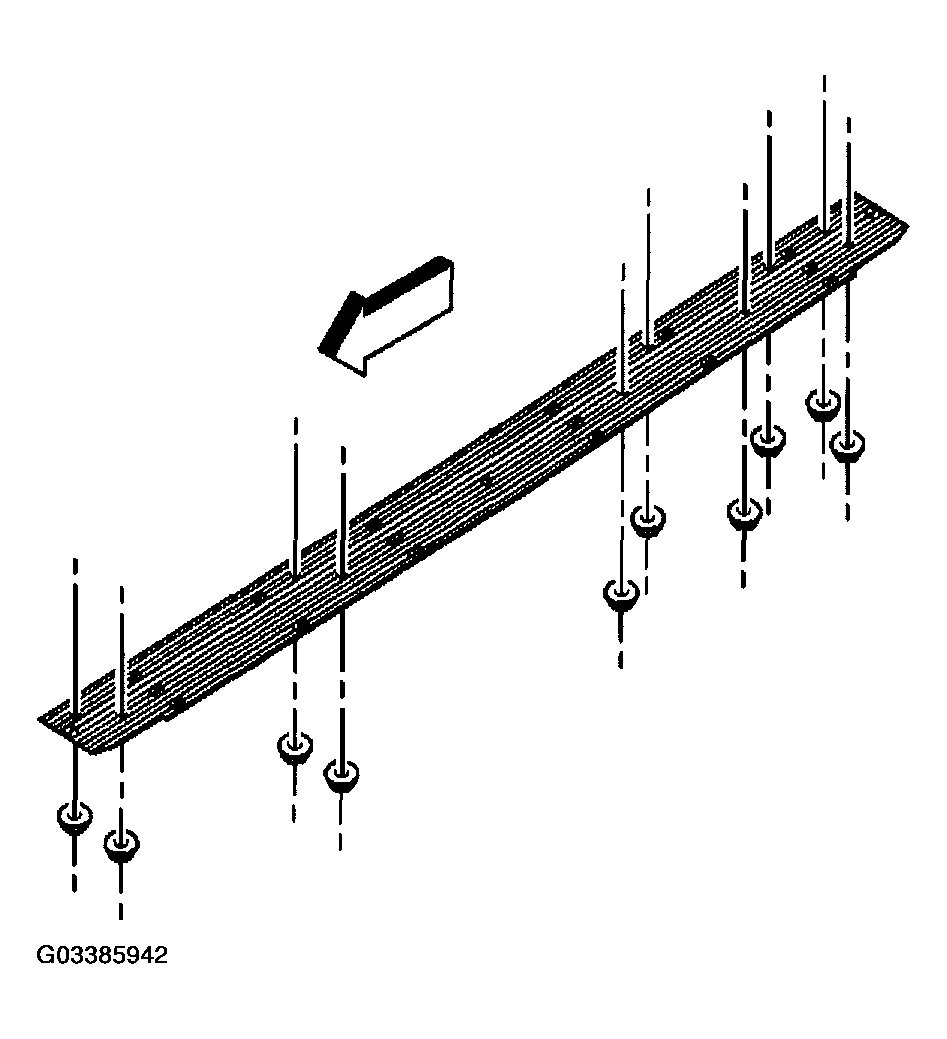

    Fig 1: Removing Assist Step Plate
    G03385942Courtesy of GENERAL MOTORS CORP.
