Installation Procedure

  1. Install the assist step plate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts that attach the assist step plate to the support bracket.

    Tighten

    Tighten the nuts that attach the assist step plate to the support bracket to 10 N.m (89 lb in).

  3. Install the front and rear assist step extensions. Refer to ASSIST STEP REPLACEMENT  .
  4. Lower the vehicle.

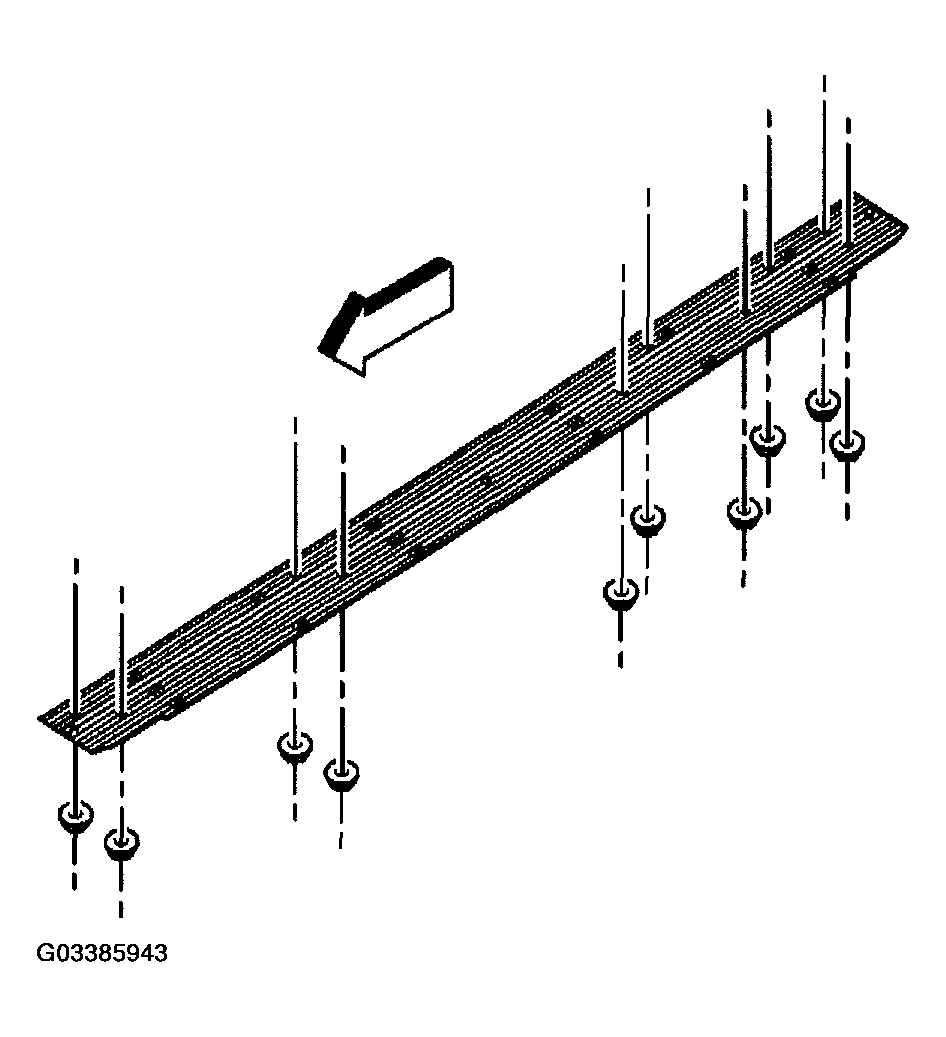

    Fig 1: Installing Assist Step Plate
    G03385943Courtesy of GENERAL MOTORS CORP.
