Installation Procedure

  1. Install the assist step pad as follows:
    1. 1.1. Align the assist step pad to the assist step plate and press downward firmly until seated.
    2. 1.2. The assist step pad nuts are to be hand torque.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the assist step pad nuts

    Tighten

    Tighten the assist step pads nuts to 8 N.m (71 lb in).

  3. Lower the vehicle.

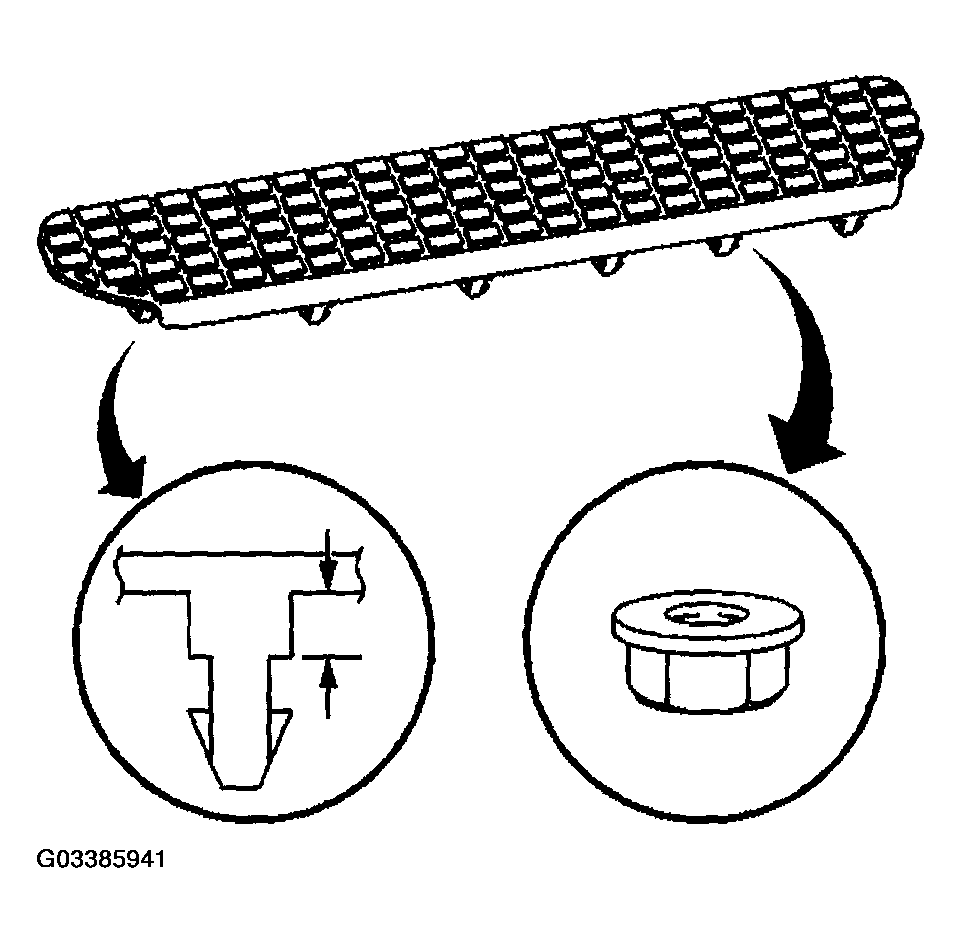

    Fig 1: Installing Assist Step Pad
    G03385941Courtesy of GENERAL MOTORS CORP.
