Removal Procedure

  1. Remove the C- pillar retaining screw.
  2. Use the J 38778 in order to release the fasteners that retain the panel to the vehicle.

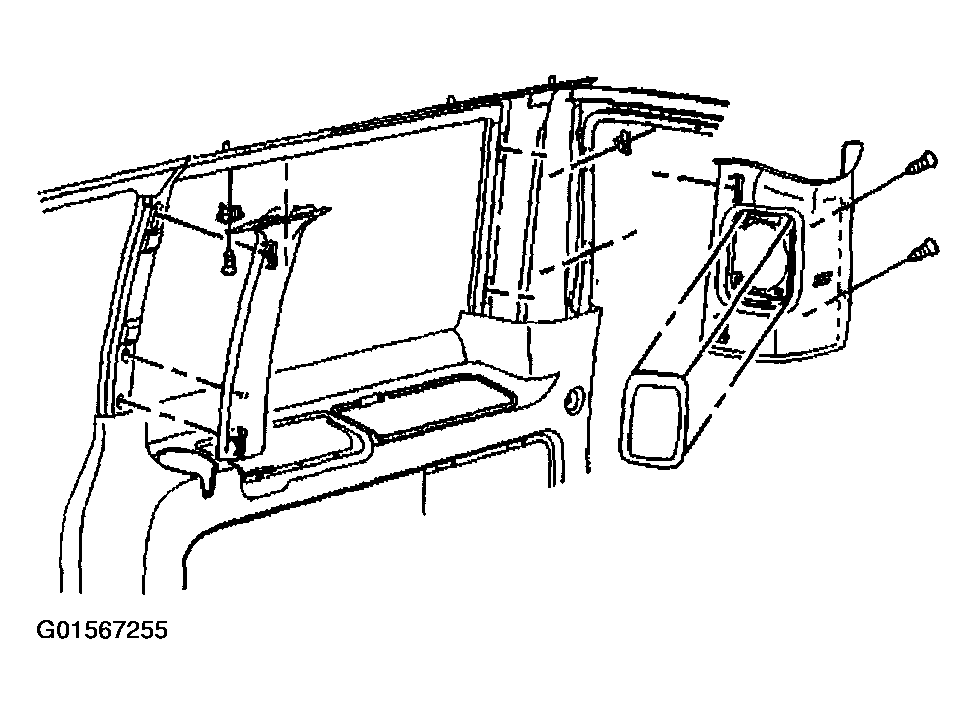

    Fig 1: Removing Third Pillar Trim - Right
    G01567255Courtesy of GENERAL MOTORS CORP.
