Removal Procedure

  1. Remove the seat belt upper mount. Refer to SEAT BELT SYSTEM in Seat Belts.
  2. Remove the retaining screw.
  3. Use the J 38778 in order to release the fasteners that retain the panel to the vehicle.

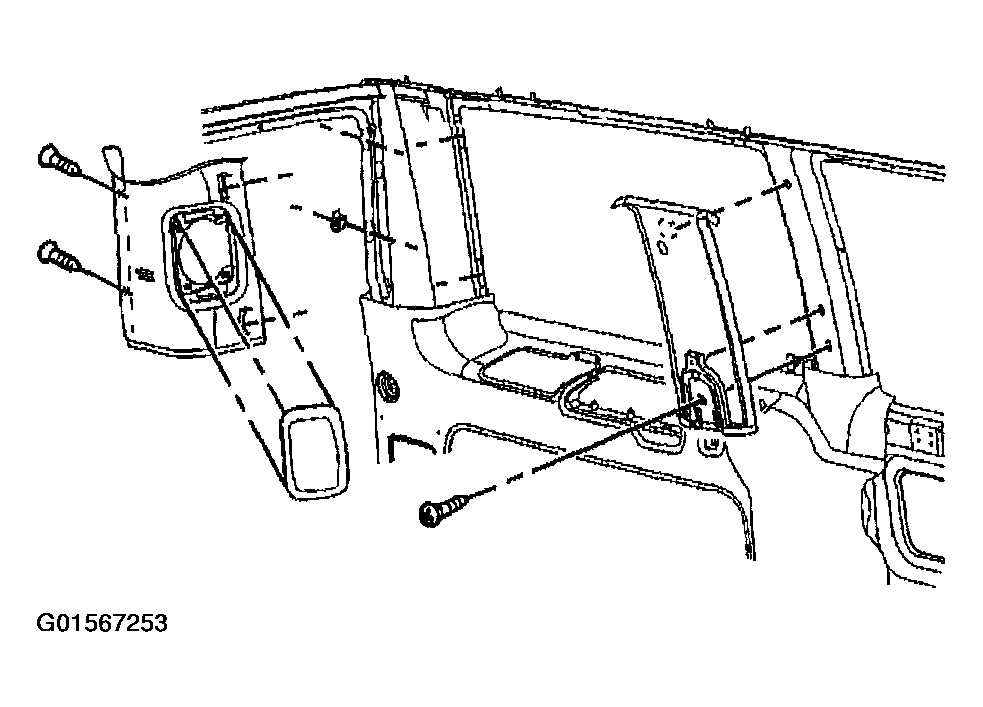

    Fig 1: Removing Third Pillar Trim - Left
    G01567253Courtesy of GENERAL MOTORS CORP.
