Removal Procedure

  1. Open the rear door(s).
  2. Remove the screws from the panel in the rear door opening.
  3. Use J 38778 in order to release the fasteners that retain the panel to the vehicle.
  4. Disconnect the speaker electrical connector, if equipped.

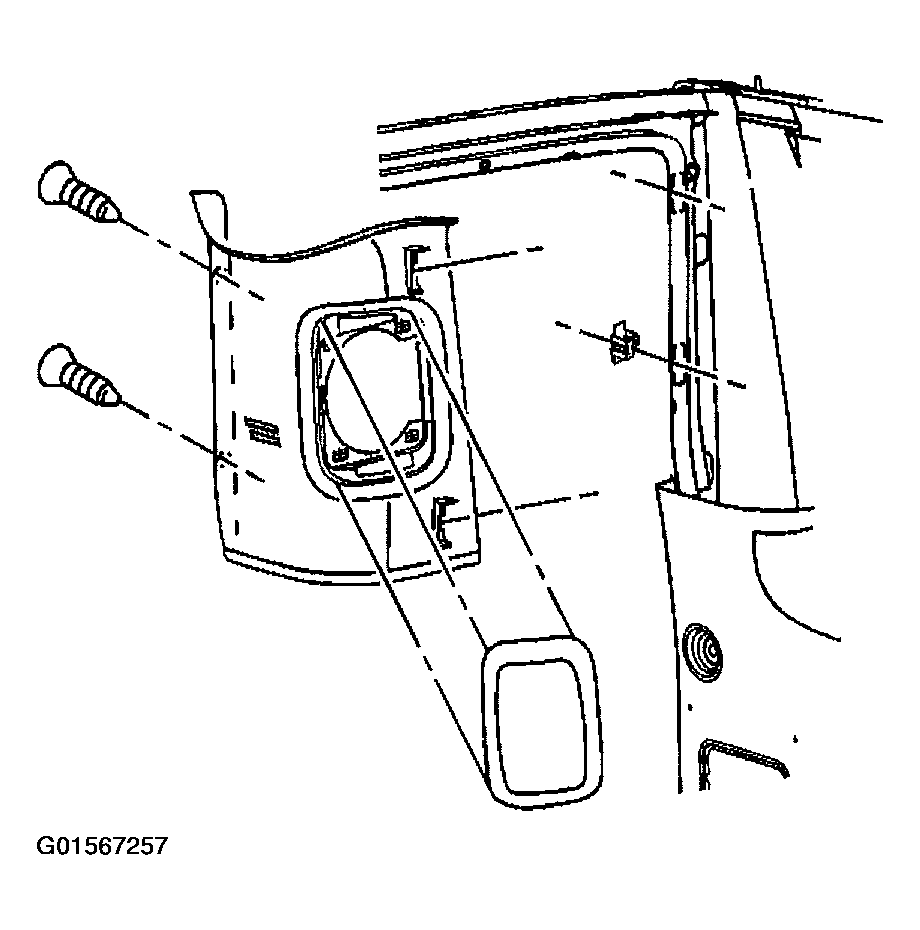

    Fig 1: Removing Fourth Pillar Trim - Left
    G01567257Courtesy of GENERAL MOTORS CORP.
